How does an annular BOP work

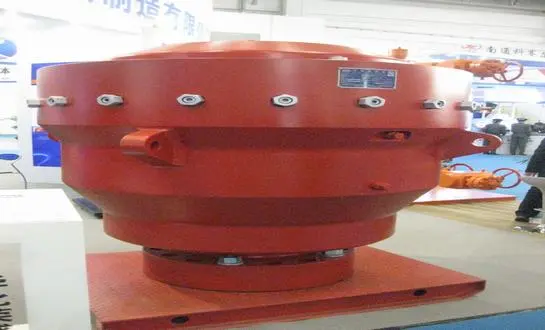

Operating Principle
The Annular Blowout Preventer (BOP) operates on a straightforward yet highly effective principle. It utilizes a rubber-like sealing element, often called a packing unit, which is activated by hydraulic pressure. This hydraulic pressure causes the packing unit to compress and deform, tightening around the drill pipe or the open wellbore. As a result, the packing unit creates a reliable and secure seal, preventing the uncontrolled release of formation fluids or gases that could lead to a blowout. The BOP’s ability to rapidly seal off the wellbore is particularly vital in preventing dangerous pressure surges during a “kick,” where the formation fluids begin to invade the wellbore.
In comparison to ram BOPs, the annular BOP provides a more adaptable sealing mechanism. While the ram BOP is designed to seal a well when the drill pipe, tubing, or casing is in place, the annular BOP is capable of sealing around the annular space, which is the space between the drill pipe and the wellbore. The annular design allows the sealing element to conform to different pipe sizes and shapes, even accommodating tool joints. This flexibility makes the annular BOP more versatile, especially during situations where the size or presence of the pipe may change rapidly.
Components and Mechanism
The core components of an annular BOP include the housing, piston, packing unit, and the hydraulic operating system. When the BOP is activated, hydraulic fluid is pumped into the chamber located above the piston. This pressurized fluid pushes the piston downward, creating the necessary force to compress the packing unit. As the packing unit compresses, it expands inward, forming a tight seal around the drill pipe, casing, or even closing off the wellbore if no pipe is present. This movement ensures the integrity of the well control system, allowing for an effective response in critical situations.
Versatility in Sealing
One of the standout features of the annular BOP is its versatility in sealing various sizes and types of drill pipes, including those with tool joints. This adaptability makes it an essential part of well control systems, especially in dynamic and unpredictable drilling environments. Whether the wellbore is clear or filled with different pipe sizes, the annular BOP can adjust its sealing mechanism, providing a quick and reliable seal when needed most. This flexibility ensures the wellbore remains secure, regardless of the conditions, helping to maintain safety and control throughout the drilling process.

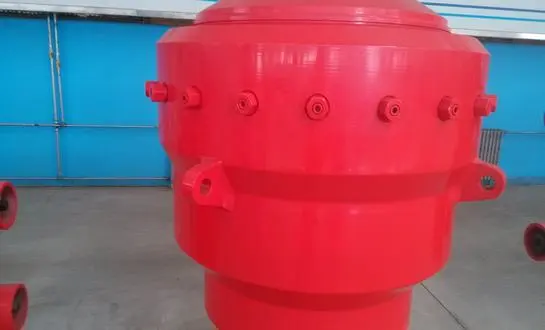

What can an annular BOP seal against
Pressure Containment
An Annular Blowout Preventer (BOP) is designed to withstand and effectively seal high-pressure fluids and gases that may attempt to escape from the wellbore during drilling operations. Its primary function is to prevent blowouts by containing pressure within safe limits. The annular BOP can handle pressures up to its rated capacity, which can vary depending on the specific model, size, and manufacturer. This pressure containment capability is vital for maintaining well control, particularly in environments where unexpected pressure fluctuations or kicks (influx of formation fluids) could lead to hazardous situations. By ensuring that these pressures are contained, the annular BOP plays a crucial role in ensuring the safety of both the wellbore and the personnel involved in drilling operations.
Sealing Around Various Objects
The annular BOP's flexible packing unit allows it to seal around a wide range of objects, including:
- Drill pipes of different sizes
- Tool joints and drill collars
- Wireline and slickline tools
- Coiled tubing
- Kelly (square or hexagonal)
This wide range of sealing capability makes the annular BOP an indispensable tool across various drilling and well intervention operations. The flexibility of the packing unit allows it to adapt to changes in the wellbore, making it a highly versatile tool for both routine and emergency well control situations.
Open Hole Sealing
Another significant feature of the annular BOP is its ability to seal against an open hole when no pipe is present. This function becomes particularly crucial during well control events or certain specialized drilling operations, where a temporary seal of the entire wellbore is required. The annular BOP’s ability to seal the wellbore without the presence of pipe prevents the uncontrolled release of formation fluids and gases, maintaining the safety of the operation even in situations where other sealing methods may not be applicable. This makes it an essential tool in well control, ensuring flexibility and reliability in a variety of drilling scenarios.
What are the advantages of an annular BOP
Versatility and Flexibility
One of the standout features of an Annular Blowout Preventer (BOP) is its exceptional versatility. Unlike ram-type BOPs, which are typically designed to seal around specific pipe sizes, an annular BOP can accommodate a wide variety of pipe diameters, as well as irregular shapes. This adaptability makes it a more flexible solution for a range of drilling scenarios. Whether the wellbore contains drill pipes, coiled tubing, or wireline tools, the annular BOP can effectively form a seal without the need for different configurations, as is often required with other types of BOPs. By reducing the necessity for multiple BOP setups, operators can streamline well control operations, saving time and resources while enhancing safety. This flexibility is especially beneficial in dynamic environments where the size or type of equipment used in the well may change frequently.
Quick Response Time
Another critical advantage of the annular BOP is its ability to respond swiftly in emergency situations. The design of the annular BOP allows for rapid activation, making it possible to quickly seal the wellbore when unexpected pressure surges, or well kicks occur. In the event of a pressure anomaly, time is of the essence, and a quick response is vital in preventing a well kick from escalating into a full-blown blowout. The ability to rapidly engage the annular BOP helps maintain well control, ensuring that the situation remains contained and under control. This quick response capability is essential not only for safeguarding the wellbore but also for protecting the safety of the rig personnel and minimizing the risk of damage to equipment.
Lower Maintenance Requirements
Annular BOPs are generally simpler in design compared to their ram-type counterparts. With fewer moving parts, they tend to experience less wear and tear, which contributes to their relatively low maintenance requirements. The simplicity of the design means there are fewer components to inspect, repair, or replace, resulting in reduced downtime and operational costs. Although the packing unit is subject to wear over time, it can typically be replaced without significant disruption to the drilling operation. This ease of maintenance helps keep the well control system functioning smoothly, minimizing the need for costly and time-consuming repairs. Overall, the lower maintenance demands of an annular BOP make it a more cost-effective and reliable choice for long-term drilling operations, enhancing both operational efficiency and safety.
Source: 老白的频道 Lao Bai
FAQ about Annular Blowout Preventers
What is the difference between an annular BOP and a ram BOP?
The main difference lies in their sealing mechanism and versatility. An Annular Blowout Preventer uses a flexible, rubber-like element to seal around various pipe sizes and shapes, or close off an open hole. A ram BOP, on the other hand, uses metal rams to seal off the wellbore, either around specific pipe sizes or to completely close the well.
How often should an annular BOP be tested?
The frequency of annular BOP testing depends on regulatory requirements and company policies. Generally, they are tested at least once every 14 days during drilling operations, or more frequently if mandated by local regulations or specific operational needs.
Can an annular BOP replace a ram BOP entirely?
While annular BOPs are highly versatile, they typically cannot replace ram BOPs entirely in a well control system. Ram BOPs offer higher pressure ratings and the ability to completely shear through drill pipe in extreme emergencies. Most modern BOP stacks include both annular and ram-type preventers to provide comprehensive well control capabilities.
In conclusion, understanding the key differences between annular and ram BOPs is crucial for making informed decisions in well control equipment selection. The Annular Blowout Preventer offers unique advantages in terms of versatility, quick response, and ease of maintenance, making it an indispensable component in modern drilling operations. China Welong, an expert worldwide integrated supply chain service provider, was established in 2001. We can establish a positive reputation with durable products thanks to strict quality control. For more information on annular BOPs and other well control equipment, please contact us at oiltools15@welongpost.com.
