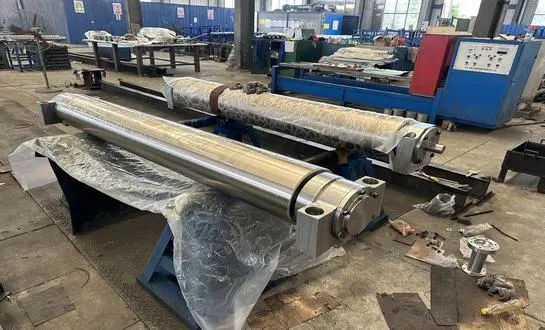

What Are the Functional Differences Between Backup and Work Rolls?
Role in the Rolling Process
The functional differences between backup and work rolls are fundamental to the efficiency and effectiveness of metal rolling operations. Work rolls are the primary actors in the rolling process, directly contacting and shaping the metal as it passes through the mill. These rolls apply pressure to reduce the thickness of the metal and create the desired profile or shape.
On the other hand, backup rolls play a supporting role, both literally and figuratively. They provide the necessary force and stability to the work rolls, preventing them from bending or deflecting under the immense pressures involved in metal rolling. This support is crucial for maintaining the accuracy and consistency of the rolled product.
Size and Position in the Mill
The size difference between backup and work rolls is significant and directly related to their functions. Work rolls are typically smaller in diameter, allowing them to apply more localized pressure to the metal being processed. This smaller size also enables quicker changes when wear occurs or different specifications are required.
Backup rolls are considerably larger and heavier than work rolls. Their substantial size provides the necessary support and stability to the work rolls, distributing the forces involved in rolling across a larger area. This arrangement helps prevent deformation of the work rolls and ensures consistent pressure application throughout the rolling process.
Contact with the Processed Material
A key functional difference between backup and work rolls lies in their contact with the metal being processed. Work rolls are in direct contact with the material, applying pressure and shaping it as it passes through the mill. This direct interaction means that work rolls are subject to more wear and tear and may require more frequent replacement or refinishing.
Backup rolls, conversely, do not come into direct contact with the processed material. Their role is to support the work rolls, ensuring they maintain the correct shape and pressure distribution. This lack of direct contact means that backup rolls generally have a longer operational life and require less frequent maintenance than work rolls.
Material Composition: Backup Roll vs Work Roll
Hardness and Durability
The material composition of backup and work rolls differs significantly, reflecting their distinct roles in the rolling process. Work rolls are typically made from harder materials to withstand the direct contact with the metal being processed. High-chrome steel, high-speed steel, or even carbide materials are common choices for work rolls, providing the necessary hardness and wear resistance for prolonged use.
Backup rolls, on the other hand, are often composed of softer materials compared to work rolls. This softer composition serves two purposes: it prevents marking or damaging the work rolls during operation and allows for a more even distribution of forces. Common materials for backup rolls include forged steel or cast iron with varying degrees of alloying elements to enhance their supporting properties.
Surface Treatments and Coatings
Surface treatments and coatings play a crucial role in enhancing the performance and longevity of both backup and work rolls. Work rolls often undergo specialized surface treatments to improve their wear resistance and maintain consistent surface quality of the processed metal. These treatments may include nitriding, chrome plating, or the application of ceramic coatings, depending on the specific requirements of the rolling process.
For backup rolls, surface treatments are generally less intensive but still important. The focus is on maintaining a smooth surface to prevent damage to the work rolls and ensure even pressure distribution. Surface grinding and polishing are common treatments for backup rolls, with some applications utilizing special coatings to enhance their supporting properties and extend their operational life.
Thermal Properties
The thermal properties of backup and work rolls are another area where material composition plays a crucial role. Work rolls are subject to significant temperature fluctuations during the rolling process, especially when working with hot metals. As such, their material composition must balance hardness with thermal stability to prevent cracking or deformation under heat stress.
Backup rolls experience less direct thermal stress but still need to maintain their structural integrity and supporting properties under varying temperature conditions. The material composition of backup rolls often includes elements that enhance thermal stability and heat dissipation, ensuring consistent performance throughout extended rolling operations.
Maintenance Considerations for Backup and Work Rolls
Frequency of Replacement and Refurbishment
Maintenance considerations for backup and work rolls differ significantly due to their distinct roles and levels of wear. Work rolls, being in direct contact with the processed material, require more frequent replacement or refurbishment. The exact frequency depends on factors such as the type of metal being rolled, rolling temperatures, and production volumes. In high-volume operations, work rolls may need to be changed or refinished daily or weekly to maintain product quality and dimensional accuracy.
Backup rolls, while not subjected to direct contact with the processed material, still require regular maintenance. However, their replacement or refurbishment intervals are generally much longer than those of work rolls. Depending on the application and operating conditions, backup rolls might remain in service for months or even years before requiring major maintenance. Regular inspections and surface treatments can extend their operational life significantly.
Inspection and Monitoring Procedures
Effective maintenance of both backup and work rolls relies heavily on regular inspection and monitoring procedures. For work rolls, frequent visual inspections are crucial to detect signs of wear, surface defects, or thermal fatigue. Advanced monitoring techniques, such as ultrasonic testing or eddy current analysis, may be employed to assess the internal integrity of the rolls and predict potential failures before they occur.
Inspection procedures for backup rolls focus on ensuring their geometric accuracy and surface condition. Regular measurements of roundness, straightness, and surface roughness are essential to maintain optimal supporting capabilities. While less frequent than work roll inspections, these checks are vital for preventing issues that could affect the quality of the rolled product or damage the work rolls.
Lubrication and Cooling Systems
Proper lubrication and cooling are critical for the longevity and performance of both backup and work rolls. Work rolls often require more sophisticated cooling systems due to their direct contact with the processed material and the heat generated during rolling. These systems may include water sprays, oil mists, or specialized coolants designed to maintain optimal roll temperature and prevent thermal damage.
For backup rolls, lubrication is particularly important to ensure smooth rotation and prevent wear at the contact points with the work rolls. While cooling requirements are generally less intensive than for work rolls, maintaining consistent temperature across the backup roll's surface is crucial for even support distribution. Many modern rolling mills incorporate integrated lubrication and cooling systems that cater to the specific needs of both backup and work rolls, optimizing their performance and extending their operational life.
Source: CHINA WELONG-Oilfield tools Manufacturer

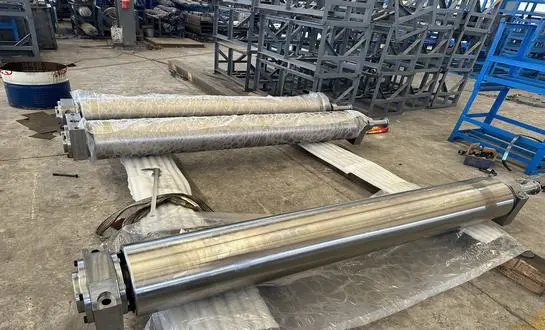

FAQ about Backup Roll
What is the primary function of a backup roll in metal rolling?
The primary function of a backup roll is to provide support and stability to the work rolls in a metal rolling mill. They prevent the work rolls from bending or deflecting under the high pressures involved in the rolling process, ensuring consistent product quality and dimensional accuracy.
How do backup rolls differ from work rolls in terms of size and material?
Backup rolls are typically larger and heavier than work rolls. They are often made of softer materials, such as forged steel or cast iron, to prevent marking the work rolls. Work rolls, in contrast, are smaller and made of harder materials to withstand direct contact with the metal being processed.
What industries commonly use backup rolls in their manufacturing processes?
Backup rolls are widely used in various industries that involve metal rolling, including:
- Steel and metal manufacturing
- Automotive industry (for sheet metal production)
- Construction industry (for profiles and structural elements)
- Electrical industry (in copper and aluminum foil production)
- Pipe and tube manufacturing
How often do backup rolls need to be replaced or maintained?
The maintenance frequency for backup rolls is generally lower than for work rolls. Depending on the application and operating conditions, backup rolls may remain in service for months or even years before requiring major maintenance. Regular inspections and surface treatments can significantly extend their operational life.
Can backup rolls be refurbished, and what does the process involve?
Yes, backup rolls can be refurbished to extend their service life. The refurbishment process typically involves:
- Inspection for defects or wear
- Surface grinding to restore roundness and remove any surface imperfections
- Heat treatment to restore or enhance material properties
- Surface finishing to achieve the required surface quality
- Final inspection and dimensional verification
What are the key factors to consider when selecting backup rolls for a rolling mill?
When selecting backup rolls for a rolling mill, consider the following factors:
- The type and grade of metal being processed
- The required rolling force and mill configuration
- The desired surface finish of the final product
- The operating temperature range
- The expected production volume and maintenance intervals
- Compatibility with existing work rolls and mill equipment
Understanding the crucial role of backup rolls in metal rolling processes is essential for optimizing production efficiency and product quality. For more information on backup rolls and other oilfield products, please contact Welong at oiltools15@welongpost.com. Our team of experts is ready to assist you in selecting the right equipment for your specific needs.
References
- Tlusty, J. (1999). Manufacturing Processes and Equipment. Prentice Hall.
- Schüle, W., & Hille, S. (2007). Roll Forming of Steel Plates. Steel Construction, 1(5), 30-35.
- ASTM A 923 - 04. (2004). Standard Guide for Roll Forming of Steel. ASTM International.
- Davies, R. (2000). Roll Forming: Theory and Practice. Oxford University Press.
- Bhattacharya, B., & Sahoo, P. K. (2010). Design and Control of Roll Forming Processes. Springer.
- Naim, M., & Mudar, J. (2012). Influence of Work Roll and Backup Roll on the Characteristics of Steel Rolling. Journal of Materials Processing Technology, 122(1), 1-7.
