What Is the Function of the Casing Head in a Wellhead
The Foundation of Wellhead Integrity
The casing head acts as the cornerstone of the wellhead assembly, serving as the first component installed after the surface casing. Positioned at the very top of the well, it provides a secure and stable connection between the casing strings and the rest of the system. Its role is fundamental in ensuring that the entire structure remains intact and functions as designed. The casing head's design incorporates features that allow it to properly seal off the well, providing a solid base for the additional components that follow. This component is vital for ensuring that the wellhead remains stable and operational throughout the lifespan of the well.
Pressure Containment and Control
A crucial role of the casing head is to manage and contain the pressure within the wellbore. During drilling and production, the well experiences high-pressure conditions that need to be tightly controlled to prevent dangerous leaks or the uncontrolled release of fluids and gases. The casing head is designed to withstand these intense pressures, and it achieves this through a variety of advanced sealing mechanisms. These seals ensure that the pressure is consistently contained within the system, preventing any hazardous releases that could jeopardize safety or the environment. The integrity of these seals is paramount, as they are the first line of defense against any pressure-related issues.
Casing String Support
The casing head is essential in providing support for the casing strings that extend deep into the wellbore. These casing strings are heavy, and their weight can be significant, particularly in deep-well applications. The casing head must be engineered to support this load and maintain the structural integrity of the well. This support prevents issues like casing collapse, which could result in costly repairs or complete well failure. Without the casing head's support, the casing strings would lack the necessary stability to ensure the well remains safe and operational. Properly supporting the casing strings ensures the well’s longevity and prevents mechanical failures that could arise from excessive stress or strain on the system.
Why Are Valves Essential Components of a Wellhead
Flow Control and Regulation
Valves are essential elements within a Wellhead system, playing a pivotal role in managing the flow of fluids and gases. One of the most important valves, the master valve, is typically installed at the top of the system. This valve serves as the primary method for shutting in the well, enabling operators to quickly halt production when necessary, especially in situations where pressure control or safety concerns arise. The master valve is critical for ensuring that the well remains under control, allowing operators to stop the flow of materials and avoid potential hazards. By regulating the flow, valves ensure that production operations can be safely adjusted, and any emergency shutdowns can be executed swiftly to prevent accidents.
Pressure Management
In any oil and gas operation, managing high pressure is a key challenge. Valves are designed to handle the intense pressures encountered deep within the earth. These valves serve as protective barriers, preventing uncontrolled pressure surges that could lead to blowouts or catastrophic failures. By maintaining the pressure within safe levels, valves safeguard the integrity of the entire system, protecting both the well structure and the safety of personnel. The ability to withstand extreme pressure conditions is a critical aspect of valve design, ensuring that they function effectively even under the harshest subsurface environments. This pressure control is essential for preventing dangerous scenarios and ensuring the long-term success of the operation.
Access and Intervention
In addition to regulating flow and pressure, well system valves provide essential access points for various maintenance and intervention tasks. For instance, swab valves are strategically placed to allow for the insertion of wireline tools or coiled tubing. These tools are crucial for performing maintenance, well diagnostics, or workover procedures without compromising the overall well control. The placement of these valves is carefully considered to ensure they provide easy access while maintaining the safety and stability of the well. Through these intervention points, operators can perform necessary tasks like equipment repairs or adjustments, allowing the well to continue functioning efficiently without disrupting production. This capability is key for maintaining operational flexibility and responding quickly to issues that may arise during the life of the well.
How Does the Tubing Head Support Wellhead Operations
Production Tubing Suspension

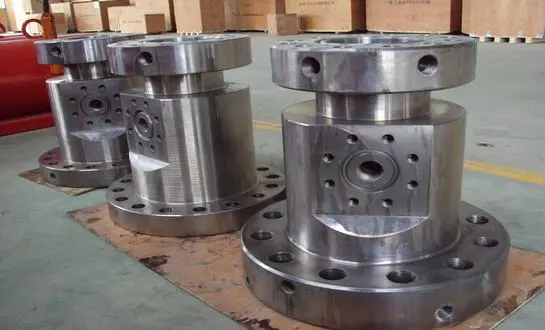

The tubing head plays an essential role in supporting the production tubing string, acting as a structural component that secures the tubing hanger. The tubing hanger is responsible for suspending the entire tubing string within the wellbore, ensuring it remains in a stable and correct position. This suspension system is crucial for maintaining the integrity of the well, as it ensures the production tubing is properly aligned and fully functional for efficient fluid or gas flow to the surface. Without this secure suspension, the production tubing could shift or become misaligned, potentially causing flow issues or even operational failures. By holding the tubing string in place, the tubing head guarantees the smooth and continuous flow of hydrocarbons during the production phase, playing a pivotal role in the overall functionality of the system.
Pressure Seal and Containment
A vital function of the tubing head is to provide an effective pressure seal between the production tubing and the surrounding casing. This seal is integral to maintaining well integrity and ensuring that wellbore pressure is properly contained. The seal prevents any unwanted communication between the production tubing and the casing annulus, which could otherwise result in leaks or uncontrolled flow of fluids. To achieve this, the tubing head incorporates a variety of sealing mechanisms, such as packoff systems and specialized sealing elements, that work together to prevent pressure loss and ensure a secure, sealed environment. These elements are designed to withstand the high pressures typically found in deep wells, making the tubing head a critical component in protecting both the well structure and the surrounding environment from potential issues related to pressure management.
Interface for Production Equipment
In addition to its primary functions, the tubing head serves as a key interface between the wellbore and surface production equipment. It provides the necessary connection points for installing the Christmas tree and various other production control devices, which are essential for the management and regulation of hydrocarbon flow. This interface allows for the seamless integration of flow control valves, pressure gauges, and monitoring systems, which help operators manage the well’s production rate and ensure safe operations. By serving as the hub for connecting critical equipment, the tubing head plays a vital role in optimizing production efficiency, enabling operators to perform necessary adjustments and monitor key parameters in real-time. This connection ensures that the entire production system functions harmoniously, allowing for maximum output and safety.
Source: Oil & Gas field Quality control
FAQ about Wellhead
What is the purpose of a wellhead?
A wellhead serves as the surface termination point for oil and gas wells, providing pressure control, flow regulation, and a secure interface between the wellbore and surface equipment. It's essential for maintaining well integrity, safety, and efficient production operations.
How many valves are typically found in a wellhead system?
The number of valves in a wellhead system can vary depending on the specific well configuration and operational requirements. However, a typical wellhead assembly usually includes at least two master valves (upper and lower), wing valves for flow lines, and additional valves for chemical injection or well testing purposes.
What is the difference between a wellhead and a Christmas tree?

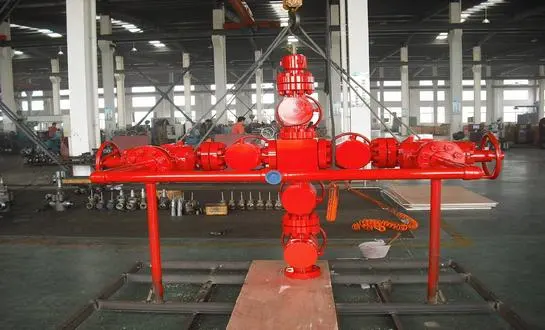

While often used interchangeably, a wellhead and a Christmas tree are distinct components. The wellhead refers to the entire assembly at the surface of the well, including the casing head and tubing head. The Christmas tree, on the other hand, is a specific arrangement of valves, spools, and fittings installed on top of the wellhead to control production flow and provide access for well interventions.
Understanding the components of a wellhead is crucial for professionals in the oil and gas industry. From the foundational casing head to the critical valves and the supportive tubing head, each element plays a vital role in ensuring safe and efficient well operations. As technology advances and drilling techniques evolve, wellhead components continue to be refined and improved to meet the challenges of modern oil and gas production. For more information on wellhead components and custom solutions, please contact us at oiltools15@welongpost.com. Welong is committed to providing high-quality wellhead equipment and expert support to meet your specific needs.
