Design and Placement: Understanding the Structural Differences
Float shoe configuration and placement

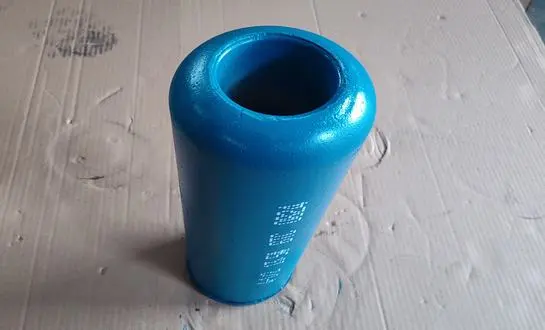

The float shoe has a rounded or bullnose design at the bottom to guide the casing as it is lowered into the wellbore. This design makes it easier to avoid obstructions and reduces the likelihood of hang-ups during installation. Typically composed of drillable materials, float shoes are designed to be easily removed once the cementing process is complete.
The float shoe, located at the very bottom of the casing string, is the first line of defense against cement backflow. Its placement makes it particularly effective at preventing u-tubing, a phenomenon where cement flows back into the casing due to changes in hydrostatic pressure.
Location and Structure of the Float Collar

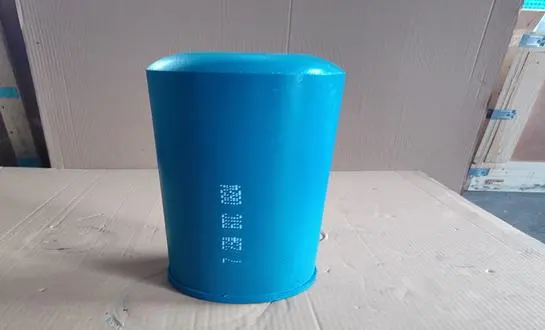

On the other hand, float collars are often positioned a few joints above the float shoe. The shoe track, a gap created by this deliberate placement beneath the float collar, can be filled with cement to strengthen the well. Since they are not required to act as a guiding device for the casing, float collars tend to be more cylindrical in shape than float shoes.
Cementing plugs are used to separate fluids during the cementing process, and the inside structure of a float collar frequently has baffles or limits that can trap and hold them. This design element is essential for indicating when cement displacement is complete.
Composition of the Material and Durability
The materials used to make float shoes and float collars are both drillable and resistant to the severe downhole conditions. But depending on the well depth, temperature, and pressure requirements, the particular materials might change. In order to endure the demands of guiding the casing, float shoes frequently use stronger materials in the nose portion, whereas float collars could give preference to materials that maximize their sealing and plug-catching capabilities.
Functional Roles: How Float Shoes and Float Collars Contribute to Well Cementing
The main purposes of float shoes
Throughout the well construction process, the float shoe fulfills a number of vital roles. Its main function is to direct the casing string into the wellbore while reducing the possibility of obstruction or damage during installation. The rounded snout of the shoe aids in diverting the casing from ledges and other wellbore wall imperfections.
Furthermore, check valves found in float shoes permit fluids to exit the casing while obstructing backflow. During cementing operations, this one-way valve system is essential because it keeps the cement slurry in place after it has been pumped. Additionally, the float shoe helps rotate and reciprocate the casing while cementing, improving cement bonding and distribution.
Important Functions of Float Collars
By adding another layer of protection against cement backflow, float collars enhance the capabilities of float shoes. An additional layer of defense against formation pressures can be added by filling the shoe track created by their placement above the float shoe with cement.
Catching and holding cementing plugs is one of the most crucial roles of float collars. During the cementing process, these plugs are utilized to keep various fluids apart and give a clear signal when the cement displacement is finished. By catching these plugs, the float collar helps operators avoid over- or under-displacement by precisely determining when to stop pumping cement.
Cooperation in Cementing Activities
Float shoes and float collars work together to provide a strong system that guarantees cementing operations are effective. While the float collar offers a secondary barrier and fine-grained control over cement application, the float shoe directs the casing and starts the cementing process. This dual-device method lowers the chance of cementing-related issues while improving cement bond quality and well integrity.
Selection Criteria: Factors Influencing Float Shoe and Float Collar Choices
Properties and Needs of the Well
The particular well conditions have a major influence on the choice of float shoe and float collar. The best devices are determined by a number of factors, including formation properties, temperature, pressure, and well depth. High-pressure, high-temperature (HPHT) wells, for example, can call for float shoes and collars made of stronger materials and with improved sealing qualities.
The choosing process is also influenced by the kind of casing being used. To guarantee correct fit and functionality, different casing weights and sizes may call for different float shoe and collar designs. To make sure these devices can handle the pressures and flow rates of the cementing operation, they should also be chosen with the expected cement slurry qualities and pumping rates in mind.
Operational Aspects
Another important consideration while choosing float shoes and collars is the well trajectory's complexity. In order to traverse intricate wellbore geometries, float shoes with improved guiding capabilities may be advantageous for highly deviated or horizontal wells. Similarly, to reduce fluid loss during cementing, wells with known zones of lost circulation may need float shoes and collars with specific features.
Another important factor to consider is operational efficiency. Features like auto-fill capabilities, which enable faster casing running while keeping good control, are incorporated into some sophisticated float shoe and collar designs in order to minimize rig time. Another critical component is the ease of drillability after cementing, particularly in multi-stage completions when prompt removal of these devices is essential.
Economic Aspects and Long-Term Results
Cost is always a factor, but it's crucial to strike a balance between upfront costs and long-term performance and integrity. Higher-quality float shoes and collars may come with a premium price tag but can offer considerable benefits in terms of reduced risk of cementing failures, higher cement bond quality, and enhanced well productivity.
It is also important to consider the manufacturer's reputation and performance history. Reputable vendors who have a track record of manufacturing high-performance float shoes and collars can offer invaluable knowledge in choosing the appropriate gear for certain well circumstances. This cooperation between suppliers and operators can result in choices that are optimally balanced in terms of performance, cost, and risk reduction.
In conclusion, In summary, choosing between float shoes and float collars is not a binary choice; rather, it is a matter of comprehending how these tools cooperate to guarantee successful well construction. By carefully weighing the distinct features and capabilities of each, engineers and drilling contractors can make well-informed choices that maximize cementing operations, improve well integrity, and increase the overall effectiveness of oil and gas production. For more information on high-quality float shoes, float collars, and other cementing tools, please contact us at oiltools15@welongpost.com.
