Understanding the Functionality of Breakout Units
Essential Elements of a Breakout Unit

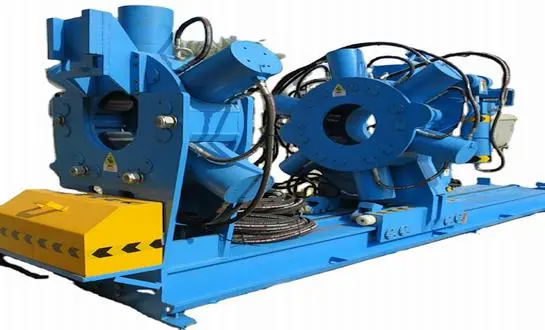

Breakout units are made up of a number of essential parts that cooperate to enable effective pipe disconnection. A strong frame, strong hydraulic cylinders, and a set of specialized jaws or clamps are the key components. With accuracy and controlled force, these parts are made to firmly grasp and spin pipe sections. The unit can break even the most difficult connections since the hydraulic system supplies the power needed to produce tremendous torque. Furthermore, sophisticated control systems that enable accurate torque adjustment and monitoring are frequently incorporated into contemporary breakout units, guaranteeing peak performance throughout a range of pipe sizes and types.
Fundamentals of Breakout Unit Operation
Applying controlled rotational force to separate threaded connections is the fundamental idea behind how a breakout unit works. The jaws of the breakout unit securely hold the pipe pieces on either side of the connection when a drill string needs to be disassembled. The necessary torque is then produced by the hydraulic system to rotate one portion while keeping the other motionless. The pipe pieces can be easily separated thanks to this controlled rotation, which successfully "breaks out" or loosens the threaded connection. The ability to precisely adjust torque levels guarantees that connections are broken safely without endangering the integrity of the drill string components or the pipe threads.
Automated Breakout Systems' Benefits
Compared to manual techniques, automated breakout systems have many benefits. They greatly lessen the physical strain on employees, lowering the possibility of accidents brought on by moving large machinery. Automated systems' accuracy and consistency also result in more dependable breakout operations, which lowers the possibility of broken threads or jammed connections. These units can also work nonstop without getting tired, which allows them to maintain high levels of efficiency during prolonged drilling operations. A more efficient and well-coordinated workflow on the rig floor is facilitated by the automation's improved connection with other drilling procedures.
Impact of Breakout Units on Drilling Performance
Pipe Handling Operations Time Savings
The huge time savings breakout units provide in pipe handling operations is one of the biggest effects they have on drilling performance. Conventional manual techniques for breaking out connections can be labor-intensive and time-consuming, which frequently causes major delays in the drilling process. Breakout units enable quicker tripping operations and more effective pipe handling by significantly cutting down on the amount of time needed for each disconnection. In order to keep project timelines on track and keep costs under control, it is especially important to minimize non-productive time during critical drilling phases, including changing drill bits or responding to downhole issues.
Increased Security in Drilling Activities
Drilling operations require a high level of safety, and breakout units greatly enhance the working environment. These units reduce the need for workers to be near heavy, moving machinery by automating the breakout process. In addition to lowering the chance of mishaps and injuries, this decrease in manual handling also lessens the possibility of mistakes brought on by fatigue that may arise during extended shifts. Breakout units' accurate control also aids in avoiding connections that are over- or under-torqued, which may result in equipment failures and possible safety risks. All things considered, the deployment of breakout units is consistent with industry initiatives to enhance worker safety and lower the frequency of incidents during drilling operations.
Increased Quality Control and Consistency
Breakout units give the pipe disconnection procedure a degree of uniformity and quality control that is challenging to attain with human techniques. By ensuring that each connection is broken out with the proper force, the ability to establish and maintain specified torque levels lowers the possibility of thread damage or partial separation. Maintaining the integrity of costly drill string components and reducing the need for premature replacements depend heavily on this consistency. Furthermore, a lot of contemporary breakout units have data logging features that let operators monitor and examine performance indicators. Maintaining a thorough log of equipment usage and maintenance requirements, spotting possible problems before they become serious, and streamlining operations can all benefit greatly from this data.
Optimizing Breakout Unit Performance for Maximum Efficiency
Frequent calibration and maintenance
Frequent calibration and maintenance are necessary to guarantee breakout devices continue to operate at their highest efficiency. This include regular examinations of worn components, control mechanisms, and hydraulic systems. In order to avoid unplanned malfunctions and preserve peak performance, moving parts should be properly lubricated and worn parts should be replaced on time. To guarantee precision and consistency in operations, torque settings and sensors should be calibrated on a regular basis. In addition to extending the equipment's lifespan, a proactive maintenance schedule helps maintain optimal operational efficiency, lowering downtime and related expenses.
Operator Education and Skill Development
Although a large portion of the pipe disconnection process is automated by breakout devices, competent operators are still essential to optimizing its effectiveness. To guarantee that operators are competent in all facets of breakout unit operation, including setup, operation, troubleshooting, and basic maintenance, extensive training programs should be put in place. The best practices for combining breakout operations with other drilling tasks should be covered in addition to the technical elements of the equipment during this training. The overall effectiveness and safety of drilling operations can be further improved by providing operators with ongoing skill development and refresher training that keep them abreast of the most recent methods and safety procedures.
Combining Cutting-Edge Drilling Technologies
Integration with other cutting-edge drilling technologies is essential to utilizing breakout units to their maximum potential. Breakout units can be integrated with rig floor management software, linked to real-time drilling data systems, or integrated with automated pipe handling systems. When breakout operations are smoothly linked with other drilling process elements, this kind of integration can result in more organized and effective drilling operations. Furthermore, the information produced by breakout units can be integrated into more comprehensive drilling analytics, offering insightful information for ongoing drilling strategy and technique improvement.
Conclusion
Breakout units are essential equipment for contemporary drilling operations since they greatly improve productivity, security, and quality assurance. Overall drilling productivity is greatly increased by their capacity to maintain constant performance, minimize manual work, and optimize pipe handling procedures. Breakout units will probably play an even bigger part in drilling operations optimization as the oil and gas sector develops. Please get in touch with us at oiltools15@welongpost.com for additional details on how breakout units might enhance your drilling operations.
