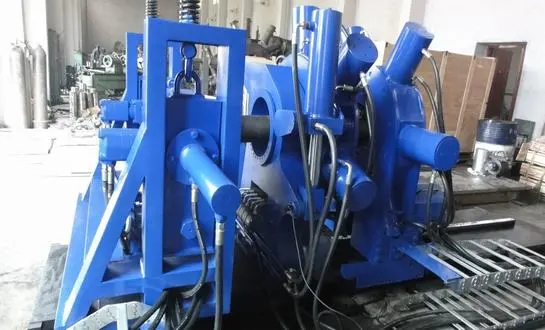

Key Components and Functionality of Breakout Units
Hydraulic and Power System Components
A breakout unit's strong power system, which usually consists of an electric motor or diesel engine, is its core. The hydraulic pump, which is powered by this source, creates the pressure required to run the unit's many parts. To apply the necessary torque for breaking out pipe connections, the hydraulic system's valves, cylinders, and actuators cooperate. Sophisticated hydraulic control systems in advanced breakout units provide accurate pressure and speed adjustments, guaranteeing peak performance across a range of pipe sizes and joint types.
Application of Torque and Gripping Mechanism
The breakout unit's gripping mechanism, which is intended to hold the drill pipe firmly during the breakout operation, is an essential part. Hydraulic-operated jaws or clamps that can handle different pipe diameters are frequently used in this system. The torque-applying mechanism, which produces the rotating force required to undo the threaded connections, cooperates with the gripping system. To ensure effective detachment and avoid damaging the pipe threads, modern breakout machines use sophisticated torque sensors and control systems to deliver the right amount of force.
Control systems and safety features
In oilfield operations, safety is crucial, and breakout units have many safeguards to safeguard workers and equipment. These could include interlocks that stop operation in dangerous situations, pressure relief valves, and emergency stop buttons. A breakout unit's control system is usually computerized, which enables accurate equipment manipulation and real-time monitoring of crucial parameters including hydraulic pressure, torque, and rotation speed. By enabling operators to manage the breakout process from a safe distance, certain sophisticated machines also include remote operating features, which further improve safety.
Operational Benefits of Using Breakout Units in Rig Moves
Efficiency of Time and Labor
The substantial time and labor savings that come with using breakout units during rig moves are among its main benefits. Breaking out drill pipe connections by hand is a labor-intensive and time-consuming process that frequently calls for many personnel and specialized equipment. A breakout unit, on the other hand, requires less manual labor and can complete the same operation in a fraction of the time. Faster rig disassembly and reassembly results from this efficiency, which enables drilling businesses to increase productive drilling hours and reduce downtime between locations.
Improved Security and Decreased Hazard
In the oil and gas sector, safety is of utmost importance, and breakout units play a major role in establishing a safer working environment during rig moves. These systems reduce the need for personnel to handle heavy machinery or perform potentially hazardous tasks by automating the process of breaking out pipe connections. Overall workplace safety is improved as a result of fewer accidents and injuries brought on by less physical strain and exposure to dangerous situations. Furthermore, breakout units' accurate management lowers operating risks and related expenses by preventing equipment damage.
Regularity and Quality Assurance
It is challenging to attain the uniformity and quality control that breakout units offer using manual techniques. The automated procedure lowers the possibility of thread damage or incorrect disconnection by guaranteeing that each pipe connection is broken out with the proper torque and method. When working with expensive drill string parts or specific connections that need to be handled carefully, this consistency is especially crucial. Breakout devices help extend the life of costly equipment and reduce the need for premature replacements or repairs by preserving the integrity of the drill string pieces.
Integrating Breakout Units into Rig Move Strategies
Organizing and Getting Ready
Planning and preparation are key to integrating breakout units into rig move strategy successfully. This entails determining the precise needs of the rig move, such as the kinds and dimensions of drill pipes that must be removed, the anticipated length of the operation, and any site-specific difficulties. Breakout unit operators should collaborate closely with drilling contractors and rig managers to create a comprehensive plan that maximizes equipment use. This could entail planning the breakout procedures, liaising with other rig move components, and making sure that all required workers and support equipment are available.
Education and the Development of Skills
It is imperative to fund extensive training programs for operators and support personnel in order to optimize the advantages of breakout units. In addition to the technical components of using the equipment, this training should go over safety protocols, troubleshooting methods, and the best ways to combine breakout operations with other rig move tasks. Employee proficiency with the newest breakout unit technologies and procedures can be maintained through ongoing skill development and refresher training, which will increase operational effectiveness and safety.
Upkeep and Enhancement
Breakout units must have routine maintenance and adjustment in order to function reliably and efficiently during rig moves. This covers regular checks, hydraulic system maintenance, and control system calibration. Drilling companies can reduce the chance of equipment breakdowns that might postpone rig move operations by putting in place a proactive maintenance strategy. Furthermore, continuous examination of breakout unit performance data can assist in locating areas for optimization, such as changing operating parameters or replacing parts to increase productivity and lower wear and tear.
Conclusion
In order to facilitate safe and efficient rig transfers, breakout units are necessary equipment. By automating the process of detaching drill pipe connections, these specialized pieces of equipment significantly reduce the time, effort, and risks associated with previous manual procedures. As the oil and gas industry grows, it will be increasingly important to incorporate advanced breakout units into rig move strategies to maintain operational efficiency and competitiveness. To learn more about breakout units and their application in rig move operations, email us at oiltools15@welongpost.com.
