How Does a Breakout Unit Support Pipeline Installation?

A Breakout Unit is essential to pipeline installation because it supplies the torque required to detach or "break out" threaded pipe connections. This specialist machinery is made to manage the high torque demands of oilfield activities, guaranteeing the safe and effective disassembly of pipe segments. In both onshore and offshore drilling settings, where heavy pipe pieces require significant force and precise control, breakout devices are very useful. These machines facilitate the maintenance, inspection, and replacement of pipeline components by enabling operators to swiftly and securely separate pipe joints through the use of hydraulic power and sophisticated gripping mechanisms. Breakout units' strength and adaptability greatly increase pipeline installation procedures' overall efficiency, lowering downtime and raising safety standards in demanding oil and gas extraction settings.

Key Components and Functions of a Breakout Unit

System of Hydraulic Power

A Breakout Unit's strong hydraulic power system is its main component. The tremendous power needed to split tightly joined pipe joints is produced by this mechanism. A sequence of valves and cylinders channels high-pressure hydraulic fluid, transforming fluid power into mechanical energy. Because hydraulic systems provide precise control, operators can apply precisely the right amount of torque, protecting costly pipeline components.

Mechanism of Gripping

The gripping mechanism is an essential component of every successful breakout unit. During the breakout process, this part firmly keeps the pipe in place. In order to reduce the possibility of deformation or damage, advanced equipment use serrated dies or specialized jaws that equally distribute the gripping force across the pipe surface. In order to meet the varied needs of pipeline installations, the gripping mechanism must be able to handle a range of pipe diameters and materials.

System of Torque Control

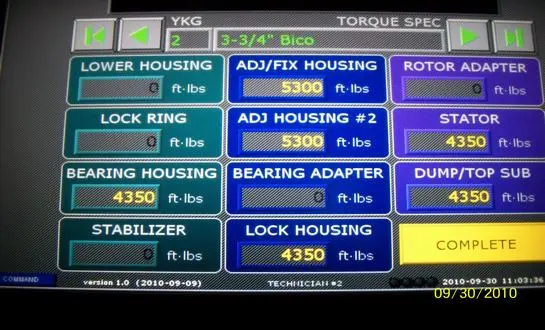

For pipeline disassembly to be both safe and effective, precise torque control is necessary. Breakout units include advanced torque control systems that give operators precise control over the applied force. These systems, which frequently have preset torque limits and digital displays, make sure that connections are broken within the structural bounds of the pipe. The unit's adaptability to various pipeline specifications is greatly enhanced by its capacity to precisely adjust torque output.

Advantages of Using a Breakout Unit in Pipeline Projects

Improved Safety Procedures

In pipeline installation projects, safety is crucial, and Breakout Units greatly enhance the working environment. These devices lessen the need for manual work in potentially dangerous circumstances by automating the high-force task of pipe joint separation. Controlled torque application reduces the possibility of unexpected releases or equipment malfunctions that could cause mishaps. To further improve operator safety, a lot of contemporary breakout units now have safety interlocks and emergency stop systems.

Enhanced Productivity and Efficiency

Pipeline installation and maintenance operations are significantly more efficient when breakout units are used. Pipe connections that would ordinarily take a lot of time and effort to deconstruct manually can be reliably and swiftly separated by these machines. On construction sites, this faster speed directly results in less downtime and more productivity. Additionally, the accuracy of breakout units guarantees easier pipe reassembling, which expedites the installation procedure overall.

Operations That Save Money

A high-quality breakout unit may need a considerable initial expenditure, but there are huge long-term cost savings. These modules help to lower total pipeline operations costs by lowering labor needs and speeding up project timetables. Breakout devices' accurate control also lowers replacement and repair costs by preventing damage to pricey pipe components. Additionally, because of their adaptability, contemporary units can be utilized for a variety of projects, increasing the return on investment for pipeline installation and drilling contractors.

Best Practices for Integrating Breakout Units in Pipeline Installation

Appropriate Education and Certification

Operators must receive thorough training if they are to take full advantage of a Breakout Unit's capabilities. When equipment is properly certified, staff may use it safely and effectively, increasing its potential and lowering hazards. In addition to operational procedures, maintenance schedules and troubleshooting methods should be covered in training programs. With this information, operators can maintain high levels of productivity and safety while responding swiftly to field difficulties.

Frequent Inspection and Maintenance

A strict maintenance schedule for breakout units is required due to the demanding nature of pipeline installation activity. Preventive maintenance and routine inspections can spot possible problems before they become expensive malfunctions or safety risks. The hydraulic system, gripping elements, and control interfaces are important areas to pay close attention to. Ensuring the equipment's longevity and dependability through the implementation of a thorough maintenance diary and adherence to manufacturer guidelines eventually supports more efficient pipeline installation procedures.

Connectivity to Digital Systems

Digital technologies are being used more and more in modern pipeline projects to maximize efficiency. Data on torque applications, operational effectiveness, and equipment health can be obtained by integrating breakout units with digital monitoring and control systems. Because of this integration, breakout methods can be modified in real time according to particular pipe properties or environmental circumstances. Furthermore, the information gathered can guide long-term enhancements to equipment design and pipeline installation methods, promoting ongoing innovation in the sector.

Conclusion

Breakout units, which provide a potent blend of safety, efficiency, and accuracy, are essential instruments in contemporary pipeline construction operations. They are an essential resource in both onshore and offshore settings due to their capacity to manage the difficult task of separating pipe connections with regulated force. The function of breakout units in facilitating efficient, secure, and economical pipeline operations is anticipated to increase even more as the oil and gas sector develops. Contact us at oiltools15@welongpost.com to learn more about how breakout units may improve your pipeline installation projects.
