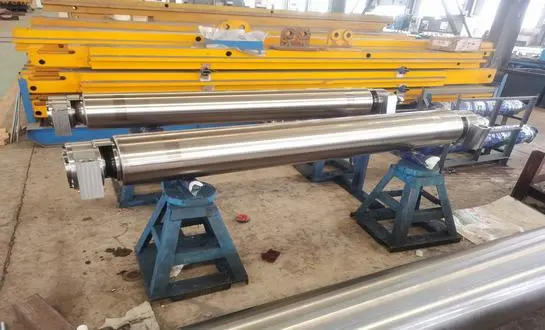

Proper steering roll alignment ensures that the web - whether it's paper, film, or fabric - travels along its intended path with precision. This alignment is fundamental to maintaining consistent tension, preventing wrinkles, and avoiding web breaks. When steering rolls are correctly aligned, they guide the web perpendicular to the roll axis, adhering to the "normal entry rule." This principle is essential for optimal web tracking and tension control.
Misalignment, on the other hand, can lead to a cascade of issues. It can cause the web to deviate from its intended path, resulting in lateral movement, uneven tension distribution, and potential damage to the material. In high-speed operations, even slight misalignments can amplify these problems, leading to significant production losses and quality issues.
What is the impact of misaligned steering rolls on web tracking?
Lateral Web Movement and Tracking Errors
Misaligned steering rolls can significantly affect the stability of the web as it moves through the system. When the rolls are not properly aligned, the web tends to shift laterally, causing it to deviate from its intended path. This lateral movement results in tracking errors, which lead to issues such as improper alignment with downstream processes like printing, coating, or slitting. Consequently, these errors can produce off-center products, misaligned patterns, or uneven coating applications, ultimately affecting the quality and consistency of the final output. Proper alignment of the steering rolls is therefore crucial for ensuring smooth operation and high-quality production.
Tension Variations Across the Web
When steering rolls are misaligned, they create uneven tension distribution across the width of the web. Some areas of the web may experience higher tension while others have lower tension. These tension variations can lead to several issues:
- Wrinkling: Areas with excessive tension may form wrinkles or creases in the material.
- Stretching: Regions under high tension might stretch beyond their elastic limit, causing permanent deformation.
- Slack edges: Insufficient tension at the web edges can result in sagging or fluttering, potentially causing web breaks or fold-overs.
Increased Web Instability
Misaligned steering rolls contribute to overall web instability. As the web travels through the system, it may oscillate or vibrate, particularly at high speeds. This instability can lead to:
- Web flutter: Rapid up-and-down or side-to-side movement of the web, causing quality issues and potential breaks.
- Edge curl: The edges of the web may curl upward or downward, affecting subsequent processes and product quality.
- Bagging: Loose areas in the web can form "bags" or pockets, leading to inconsistent tension and potential defects.
Principles of web alignment in steering roll systems
Normal Entry Rule and Its Importance
The normal entry rule is a fundamental principle in web handling systems. It states that a moving web will naturally align itself perpendicular to the axis of an approaching roller. This principle forms the basis for effective web guiding and steering. When steering rolls are correctly aligned, they leverage this natural tendency of the web to maintain proper tracking. Understanding and applying the normal entry rule is crucial for:
- Optimizing web path design
- Positioning steering rolls for maximum effectiveness
- Minimizing web distortion and stress
Tram and Bow Alignment Concepts
Tram and bow alignment are two critical aspects of steering roll positioning:
- Tram alignment: Ensures that the roll is parallel to adjacent rolls and perpendicular to the intended web path. Proper tram alignment prevents the web from tracking to one side.
- Bow alignment: Addresses any curvature in the roll surface. A "bowed" roll can cause the web to track toward the center or edges, depending on the direction of the bow.
Achieving correct tram and bow alignment is essential for maintaining consistent web tracking and preventing issues like wrinkles or uneven tension distribution.
Web Guide Systems and Feedback Mechanisms
Modern web handling systems often incorporate sophisticated web guide systems and feedback mechanisms to maintain proper alignment:
- Edge sensors: Detect the position of the web edge and provide feedback for automatic steering adjustments.
- Line sensors: Monitor printed lines or patterns on the web to ensure accurate tracking.
- Ultrasonic sensors: Use sound waves to detect web position without contacting the material.
- Closed-loop control systems: Continuously adjust steering roll position based on sensor feedback to maintain optimal web alignment.
These systems work in conjunction with properly aligned steering rolls to ensure precise web tracking throughout the process.

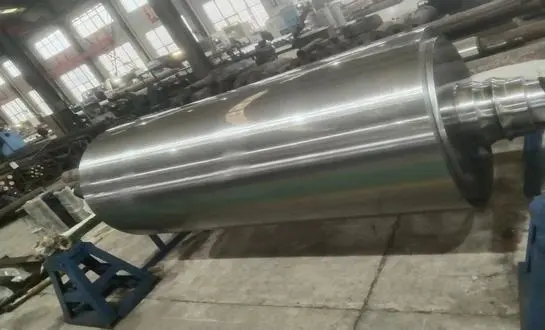

Role of steering roll positioning in preventing web defects
Minimizing Wrinkles and Creases
Proper steering roll positioning plays a crucial role in minimizing wrinkles and creases in the web. When rolls are correctly aligned, they help maintain even tension distribution across the web width. This uniform tension prevents the formation of loose areas that can fold or crease as the web travels through the system. Additionally, well-positioned steering rolls ensure that the web enters subsequent processes at the correct angle, reducing the likelihood of wrinkle formation due to misalignment or improper web path.
Reducing Web Breaks and Material Waste
Accurate steering roll positioning significantly contributes to reducing web breaks and material waste. By maintaining proper alignment, steering rolls help distribute stress evenly across the web, preventing localized areas of high tension that could lead to breaks. This is particularly important in high-speed operations where even minor misalignments can quickly escalate into catastrophic failures. By reducing the frequency of web breaks, proper roll positioning helps minimize:
- Production downtime
- Material waste
- Maintenance costs associated with frequent stoppages
Ensuring Consistent Product Quality
The positioning of steering rolls directly impacts product quality consistency. Correct alignment ensures that the web maintains its intended path and tension throughout the process, which is crucial for:
- Accurate printing registration
- Uniform coating application
- Precise slitting and cutting operations
By preventing lateral web movement and maintaining consistent tension, proper steering roll positioning helps achieve tighter tolerances and higher overall product quality. This consistency is essential for meeting customer specifications and reducing rejection rates.
Source: CHINA WELONG-Oilfield tools Manufacturer
FAQ about Steering Roll
What is the difference between a steering roll and a tension roller?
While both steering rolls and tension rollers play important roles in web handling systems, they serve different primary functions:
- Steering Roll: Primarily used to guide and align the web laterally, ensuring it follows the intended path through the system.
- Tension Roller: Designed to maintain consistent tension in the web, often through adjustable pressure or positioning.
Steering rolls may contribute to tension control, but their main purpose is web alignment. Tension rollers, on the other hand, focus on maintaining the appropriate tension throughout the web path.
How often should steering roll alignment be checked?
The frequency of steering roll alignment checks depends on several factors:
- Production speed and volume
- Type of materials being processed
- Environmental conditions (temperature fluctuations, vibrations)
- System complexity
As a general guideline, steering roll alignment should be checked:
- During routine maintenance intervals
- After any significant changes to the system or process
- When quality issues or web handling problems arise
- At least quarterly for high-volume operations
Regular alignment checks help prevent issues before they impact production quality or efficiency.
Can misaligned steering rolls cause long-term damage to web handling equipment?
Yes, misaligned steering rolls can indeed cause long-term damage to web handling equipment if left uncorrected. Some potential long-term effects include:
- Excessive wear on roller bearings due to uneven load distribution
- Damage to roller surfaces from increased friction or web edge contact
- Stress on adjacent equipment components due to compensating for misalignment
- Premature failure of web guide systems from constant overcompensation
Regular alignment checks and prompt correction of any issues can help prevent these long-term damages and extend the life of web handling equipment.
In conclusion, steering roll alignment is a critical factor in the performance and efficiency of web handling systems. Proper alignment ensures smooth web tracking, consistent tension, and high-quality output. By understanding the principles of web alignment and implementing regular maintenance practices, manufacturers can optimize their processes and reduce costly defects and downtime. For more information on steering rolls and web handling solutions, please contact us at oiltools15@welongpost.com. Welong is committed to providing high-quality web handling components and expert guidance to help you achieve optimal performance in your manufacturing processes.
