Furnace Roll Manufacturing: From Raw Steel to Precision Machining

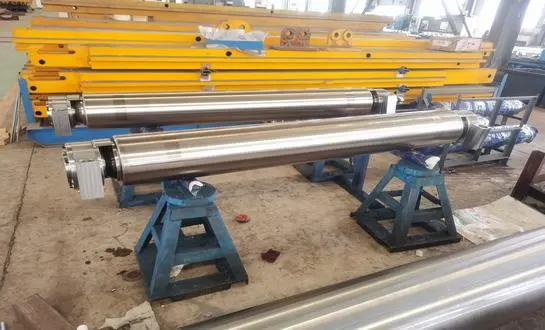

Raw Material Selection and Preparation
The journey of a furnace roll begins with the careful selection of raw materials. High-quality alloy steel is typically chosen for its superior heat resistance and durability. The composition of the steel is meticulously controlled to ensure it meets the specific requirements for the intended application. Common alloys used include heat-resistant grades such as H13, which offer excellent resistance to thermal fatigue and wear.
Once the appropriate steel grade is selected, it undergoes initial preparation. This involves cutting the steel into manageable sizes and performing preliminary heat treatments to improve its machinability. The steel is then subjected to non-destructive testing methods, such as ultrasonic inspection, to detect any internal flaws or inconsistencies that could compromise the final product's integrity.
Forging or Casting Process
After the raw material preparation, the next critical step in furnace roll manufacturing is the shaping of the steel into its basic form. This is typically accomplished through either forging or casting, depending on the specific requirements of the final product.
Forging involves heating the steel to extremely high temperatures and then shaping it using immense pressure. This process aligns the metal's grain structure, resulting in a stronger and more uniform internal composition. Forged furnace rolls are often preferred for applications requiring maximum strength and durability.
Casting, on the other hand, involves pouring molten steel into a mold shaped like the desired roll. While casting can produce more complex shapes and is often more cost-effective for larger production runs, it generally results in a less uniform internal structure compared to forging.
Initial Machining and Rough Shaping
Once the basic shape of the furnace roll is formed through forging or casting, it undergoes initial machining processes. This stage involves rough turning on large lathes to remove excess material and bring the roll closer to its final dimensions. Computer Numerical Control (CNC) machines are often employed to ensure precision and consistency in this process.
During this phase, features such as journals (the areas where the roll will be supported in the furnace) are roughly shaped. The surface of the roll body is also machined to remove any scale or imperfections from the forging or casting process. This initial machining sets the stage for the more precise operations that will follow.

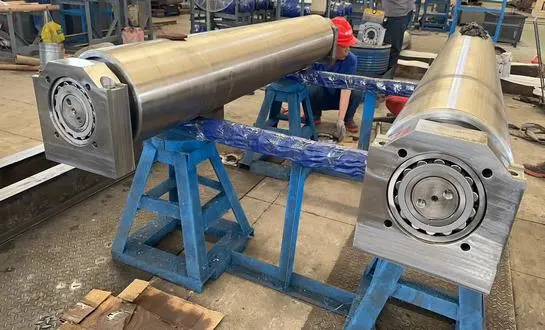

Are Forged or Cast Furnace Rolls Stronger?
Comparing Forged and Cast Furnace Rolls
The debate between forged and cast furnace rolls is ongoing in the industry, with each method offering distinct advantages. Forged rolls are generally considered stronger due to their refined grain structure and increased density. The forging process aligns the metal's grain, reducing internal voids and creating a more uniform composition throughout the roll. This results in superior mechanical properties, including higher tensile strength and improved resistance to fatigue and wear.
Cast rolls, while typically not as strong as their forged counterparts, offer advantages in terms of cost-effectiveness and the ability to create more complex shapes. The casting process allows for the incorporation of intricate internal cooling channels, which can be beneficial in certain high-temperature applications. However, cast rolls may have a less uniform internal structure and potentially more inclusions or porosity, which can affect their overall strength and durability.
Factors Influencing Strength and Durability
The strength and durability of furnace rolls depend on various factors beyond the manufacturing method. The alloy composition plays a crucial role, with different elements added to enhance specific properties such as heat resistance, wear resistance, or thermal conductivity. The heat treatment process, which we'll explore in more detail later, is another critical factor in determining the final strength of the roll.
Surface treatments and coatings can also significantly impact the performance of furnace rolls. Advanced coatings can provide additional protection against wear, corrosion, and thermal fatigue, extending the life of both forged and cast rolls in demanding industrial environments.
Choosing the Right Type for Your Application
Selecting between forged and cast furnace rolls depends on the specific requirements of your application. Factors to consider include:
- Operating temperature and thermal cycling
- Load-bearing requirements
- Expected service life
- Budget constraints
- Complexity of roll design (e.g., need for internal cooling channels)
For applications requiring maximum strength and resistance to thermal fatigue, such as in high-temperature reheat furnaces in the oil and gas industry, forged rolls are often the preferred choice. However, for less demanding applications or where cost is a primary concern, cast rolls may provide a suitable alternative. Consulting with experienced manufacturers and conducting thorough cost-benefit analyses can help in making the optimal decision for your specific needs.
Step-by-Step: How Furnace Rolls Are Heat-Treated for Maximum Strength
Pre-Heat Treatment Preparation
Before the heat treatment process begins, furnace rolls undergo thorough preparation to ensure optimal results. This preparation includes:
- Surface cleaning to remove any contaminants that could interfere with the heat treatment process
- Precise measurement and documentation of the roll's dimensions to track any changes during heat treatment
- Application of protective coatings or wraps to prevent surface oxidation during high-temperature exposure
- Careful placement of thermocouples to monitor temperature distribution throughout the heat treatment cycle
These preparatory steps are crucial for achieving consistent and reliable results in the subsequent heat treatment stages.
Heat Treatment Process
The heat treatment of furnace rolls is a multi-stage process designed to enhance their mechanical properties and ensure they can withstand the extreme conditions of their intended applications. The typical heat treatment sequence includes:
- Austenitizing: The roll is heated to a temperature above its critical point, typically between 1600°F and 2000°F (870°C to 1090°C), depending on the alloy composition. This step dissolves carbides and creates a uniform austenitic structure.
- Quenching: Rapidly cooling the roll to room temperature or slightly above. This can be done using oil, polymer solutions, or in some cases, air cooling for larger rolls. Quenching "freezes" the austenitic structure, creating a very hard but brittle martensitic structure.
- Tempering: Reheating the roll to a specific temperature, usually between 900°F and 1200°F (480°C to 650°C), and holding it for a predetermined time. This process relieves internal stresses, reduces brittleness, and achieves the desired balance of hardness, strength, and toughness.
- Stress relieving: An additional lower temperature heat treatment may be performed to further relieve any residual stresses from the manufacturing and heat treatment processes.
The exact temperatures, durations, and cooling rates are carefully controlled and may vary depending on the specific alloy and desired properties of the furnace roll.
Post-Heat Treatment Processing
After the heat treatment cycle is complete, furnace rolls undergo several additional processes to ensure they meet the required specifications:
- Slow cooling: The rolls are allowed to cool slowly to room temperature to prevent any thermal shock or distortion.
- Dimensional inspection: Precise measurements are taken to verify that the roll dimensions are within the specified tolerances.
- Non-destructive testing: Techniques such as ultrasonic testing or magnetic particle inspection are used to check for any internal defects or surface cracks that may have developed during heat treatment.
- Hardness testing: Multiple hardness tests are performed across the roll's surface to ensure uniform hardness and that the desired hardness level has been achieved.
- Microstructure analysis: Samples may be taken for metallographic examination to verify the proper microstructure has been obtained.
If any issues are detected during these post-heat treatment inspections, the roll may be subjected to additional heat treatment cycles or, in severe cases, rejected and recycled.
Source: CHINA WELONG-Oilfield tools Manufacturer
FAQ about Furnace Roll
What materials are commonly used for furnace rolls?
Furnace rolls are typically manufactured using heat-resistant alloy steels. Common materials include:
- H13 tool steel: Known for its excellent resistance to thermal fatigue and wear
- 4140 alloy steel: Offers a good balance of strength and toughness
- Nickel-chromium alloys: Provide superior corrosion resistance at high temperatures
- Stainless steels: Used in applications requiring both heat and corrosion resistance
The choice of material depends on the specific operating conditions, including temperature, load, and environmental factors.
How long do furnace rolls typically last?
The lifespan of a furnace roll can vary significantly depending on several factors:
- Operating temperature and thermal cycling
- Load and stress conditions
- Material quality and manufacturing process
- Maintenance practices
- Environmental factors (e.g., presence of corrosive gases)
Well-manufactured and properly maintained furnace rolls can last anywhere from 1 to 5 years in continuous operation, with some high-quality rolls lasting even longer in less demanding applications. Regular inspections and preventive maintenance can help extend the service life of furnace rolls.
What are the signs that a furnace roll needs replacement?
Several indicators suggest that a furnace roll may need replacement:
- Visible surface wear, pitting, or cracking
- Dimensional changes or out-of-roundness
- Increased vibration or noise during operation
- Decreased product quality or inconsistent heating
- Excessive bearing wear or failure
- Results from non-destructive testing indicating internal defects
Regular inspections and performance monitoring are crucial for identifying these signs early and planning timely replacements to avoid unscheduled downtime.
In conclusion, the manufacturing of furnace rolls is a complex process that requires extensive expertise in metallurgy, heat treatment, and precision machining. Understanding this process can help industry professionals make informed decisions when selecting and maintaining these critical components. For more information on high-quality furnace rolls and other oilfield products, please contact us at oiltools15@welongpost.com. Welong is committed to providing top-tier products and services to meet the demanding needs of the oil and gas industry.
