What are common tension roll issues and how can they be identified?

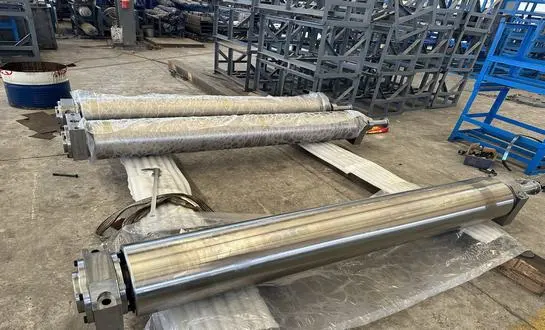

Misalignment and Wear
One of the most prevalent issues affecting tension roll performance is misalignment and wear of components. These problems can manifest in various ways, impacting the overall efficiency of the system. Let's explore some common alignment and wear-related issues:
- Misaligned rider rolls: When rider rolls are not properly aligned, it can lead to uneven tension distribution across the web, resulting in wrinkles, creases, or even web breaks.
- Bent shafts: Shafts that have become bent due to excessive force or improper handling can cause vibrations and inconsistent tension, leading to poor roll quality.
- Worn bearings: Over time, bearings can wear down, causing increased friction and potentially damaging other components in the tension roll system.
- Loose assemblies: Loose bolts, nuts, or other fasteners can result in vibrations and instability, affecting the overall performance of the tension roll.
To identify these issues, operators should conduct regular visual inspections and listen for unusual noises during operation. Vibration analysis can also be an effective tool for detecting misalignment and wear problems before they escalate.
Tension Control Malfunctions
Proper tension control is essential for optimal tension roll performance. When tension control systems malfunction, it can lead to a host of problems. Some common tension control issues include:
- Faulty unwind tension controls: If the unwind tension is not properly regulated, it can result in inconsistent tension throughout the web, leading to wrinkles or breaks.
- Nipload control problems: Incorrect nipload settings can cause insufficient or excessive pressure between the nip rolls, affecting the overall tension and potentially damaging the web material.
- Torque control irregularities: Issues with torque control can lead to sudden changes in tension, causing web breaks or inconsistent roll quality.
To identify tension control malfunctions, operators should monitor tension readings closely and look for any sudden fluctuations or inconsistencies in tension levels across the web.
Core and Roll Structure Issues
The core and overall roll structure are critical components that can significantly impact tension roll performance. Common issues in this area include:
- Loose or damaged cores: Cores that are not securely fastened or have sustained damage can cause inconsistent tension and potential web breaks.
- Roll structure problems: Issues such as starring (radial lines or ridges in the roll) can occur when there are significant drops in wound-in tension.
- Core crushing or offsetting: Excessive pressure or misalignment can lead to core damage, affecting tension control and subsequent processes.
To identify these issues, operators should perform regular inspections of cores and finished rolls, looking for signs of damage, deformation, or inconsistent winding patterns.
How does improper tension affect roll performance?
Impact on Web Handling
Improper tension in tension rolls can have a significant impact on web handling processes. When tension is not properly controlled, it can lead to various issues that affect the quality and efficiency of operations:
- Web breaks: Excessive tension can cause the web material to break, resulting in downtime and material waste.
- Wrinkles and creases: Insufficient or uneven tension can lead to the formation of wrinkles or creases in the web, compromising product quality.
- Inconsistent winding: Improper tension can result in unevenly wound rolls, which may cause problems in subsequent processing or end-use applications.
- Registration issues: In printing or converting processes, incorrect tension can lead to poor registration, affecting the final product quality.
To mitigate these issues, it's crucial to maintain proper tension throughout the web handling process, ensuring that tension levels are appropriate for the material being used and the specific application requirements.
Effects on Equipment Longevity
Improper tension not only affects the quality of the web material but can also have long-term consequences for the equipment itself:
- Increased wear and tear: Excessive tension can accelerate wear on bearings, shafts, and other mechanical components, leading to more frequent maintenance and replacements.
- Premature equipment failure: Consistently operating with improper tension levels can cause premature failure of critical components, resulting in costly downtime and repairs.
- Reduced efficiency: Equipment operating under improper tension conditions may consume more energy and require more frequent adjustments, reducing overall operational efficiency.
To protect equipment and ensure long-term reliability, it's essential to maintain proper tension settings and conduct regular maintenance checks on all tension roll components.
Quality Control Challenges
Improper tension in roll systems can create significant challenges for quality control processes:
- Inconsistent product quality: Variations in tension can lead to inconsistencies in the final product, such as thickness variations or surface defects.
- Difficulty in maintaining specifications: When tension is not properly controlled, it becomes challenging to consistently meet product specifications, potentially leading to customer dissatisfaction and increased reject rates.
- Increased scrap and waste: Quality issues resulting from improper tension can lead to higher rates of scrap and waste, impacting both material costs and environmental sustainability efforts.
To address these challenges, implementing robust tension control systems and regular quality checks is essential for maintaining consistent product quality and meeting customer expectations.

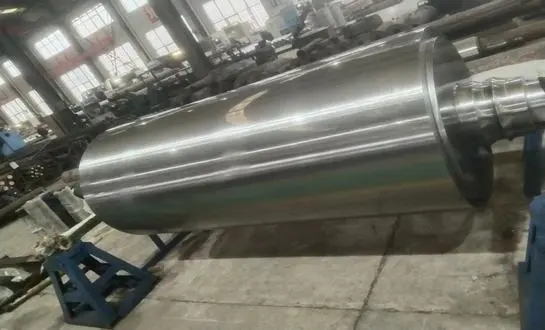

Steps to calibrate tension rolls for optimal operation
Initial Setup and Alignment
Proper calibration of tension rolls is crucial for achieving optimal performance. The initial setup and alignment process lays the foundation for efficient operation:
- Ensure all components are clean and free from debris before beginning the calibration process.
- Check and adjust the alignment of all rollers, ensuring they are parallel to each other and perpendicular to the web path.
- Verify that all bearings are properly lubricated and moving freely.
- Inspect and tighten all fasteners, ensuring there are no loose components that could affect alignment.
- Use precision measurement tools, such as laser alignment systems, to ensure accurate positioning of all roller components.
By carefully executing these initial setup steps, operators can establish a solid foundation for accurate tension control and optimal roll performance.
Tension Control System Calibration
Calibrating the tension control system is a critical step in optimizing tension roll performance:
- Start by verifying that all tension sensors are functioning correctly and providing accurate readings.
- Calibrate the tension control system according to the manufacturer's specifications, typically using known weights or a calibrated load cell.
- Set the desired tension range for the specific material being processed, taking into account factors such as material properties and process requirements.
- Adjust PID (Proportional-Integral-Derivative) control parameters to ensure smooth and responsive tension control.
- Perform a series of test runs at different speeds and tension levels to verify the system's performance across its operating range.
Proper calibration of the tension control system ensures accurate and consistent tension throughout the web handling process, contributing to improved product quality and reduced waste.
Fine-tuning and Optimization
After initial setup and calibration, fine-tuning the tension roll system can further enhance its performance:
- Monitor tension levels during production runs and make minor adjustments as needed to maintain optimal tension.
- Analyze tension data over time to identify any trends or recurring issues that may require further attention.
- Experiment with different tension settings within the acceptable range to find the optimal balance between product quality and process efficiency.
- Regularly perform gap tests or WIT-WOT (Wound-In-Tension / Wound-Off-Tension) analyses to assess roll structure and make necessary adjustments.
- Implement a regular maintenance schedule to ensure all components remain in optimal condition, contributing to consistent tension control.
By continuously fine-tuning and optimizing the tension roll system, operators can achieve peak performance, minimize downtime, and maximize product quality.
Source: CHINA WELONG-Oilfield tools Manufacturer
FAQ about Tension Roll
What is the ideal tension range for most materials?
The ideal tension range for most materials typically falls between 10% and 25% of the material's tensile strength. However, this can vary depending on the specific material properties and process requirements. It's essential to consult material specifications and conduct tests to determine the optimal tension range for each application.
How often should tension rolls be inspected and maintained?
Regular inspection and maintenance of tension rolls are crucial for optimal performance. A general guideline is to perform visual inspections daily, conduct more thorough examinations weekly, and schedule comprehensive maintenance checks monthly or quarterly, depending on usage and operating conditions. However, the specific frequency may vary based on factors such as production volume, material types, and environmental conditions.
What are the signs of a failing tension roll bearing?
Signs of a failing tension roll bearing may include:
- Unusual noises, such as grinding, squealing, or clicking sounds
- Excessive vibration or wobbling of the roll
- Increased operating temperature of the bearing housing
- Inconsistent tension readings or difficulty maintaining proper tension
- Visible wear, scoring, or discoloration on the bearing surfaces
If any of these signs are observed, it's important to address the issue promptly to prevent further damage and potential system failure.
