- Superior Tensile Strength: The addition of chromium and molybdenum significantly enhances the tensile strength of 42CrMo4, allowing forged shafts to withstand extreme loads and stresses.
- Excellent Wear Resistance: The microstructure developed during the forging process, combined with the alloy composition, results in exceptional wear resistance, crucial for components subjected to constant friction and abrasion.
- High Fatigue Resistance: 42CrMo4 forged shafts exhibit remarkable fatigue resistance, ensuring longer operational life under cyclic loading conditions common in drilling operations.
- Enhanced Toughness: The forging process aligns the grain structure, improving the overall toughness of the material, which is vital for absorbing impact and resisting crack propagation.
- Corrosion Resistance: While not stainless, 42CrMo4 offers better corrosion resistance compared to many other carbon steels, making it suitable for various environmental conditions encountered in the oil and gas industry.
These metallurgical advantages translate into tangible benefits for drilling contractors and equipment manufacturers, including reduced downtime, lower maintenance costs, and improved operational efficiency. As we explore each advantage in detail, it becomes clear why 42CrMo4 shaft forging is increasingly becoming the go-to solution for high-performance industrial applications.
How Does Chromium-Molybdenum Boost Tensile Strength?
The Synergistic Effect of Chromium and Molybdenum
The inclusion of chromium and molybdenum in 42CrMo4 steel creates a synergistic effect that significantly enhances its tensile strength. Chromium forms hard carbides within the steel matrix, increasing overall hardness and strength. Simultaneously, molybdenum contributes to solid solution strengthening and improves hardenability. This combination allows for a more uniform and finer microstructure during heat treatment, resulting in superior tensile properties.
Impact of Heat Treatment on Strength
The heat treatment process for 42CrMo4 shaft forging plays a crucial role in optimizing tensile strength. Quenching and tempering procedures can be finely tuned to achieve the desired balance between strength and ductility. The presence of chromium and molybdenum allows for a wider range of heat treatment options, enabling manufacturers to tailor the mechanical properties to specific application requirements.
Grain Structure Refinement
During the forging process, the application of controlled deformation at elevated temperatures leads to dynamic recrystallization and grain refinement. The alloying elements in 42CrMo4 help to maintain a fine grain structure by inhibiting grain growth. This refined microstructure contributes significantly to the overall tensile strength of the forged shaft, as finer grains provide more barriers to dislocation movement, thereby increasing the material's resistance to deformation.
Can Microalloying Enhance Wear Resistance in 42CrMo4?
The Role of Carbide Formation
The addition of microalloying elements like vanadium, niobium, or titanium in precise amounts plays a significant role in enhancing the wear resistance of 42CrMo4 shaft forging. These elements form fine, uniformly distributed carbides within the steel matrix during the alloying process. These carbides act as hard, abrasive particles that resist wear and erosion when subjected to frictional forces in harsh environments, such as mining or heavy-duty machinery operations. As a result, the 42CrMo4 shaft forging exhibits improved resistance to surface damage, which prolongs the service life of the component. The fine dispersion of carbides ensures that the steel maintains a consistent level of wear resistance over time, preventing rapid deterioration under stress and reducing the need for frequent maintenance or replacement.
Optimization of Microstructure
Microalloying elements in 42CrMo4 also contribute to the optimization of its microstructure, which is essential for achieving a balance between strength, hardness, and toughness. These elements help control the austenite grain size, which is crucial for promoting the formation of finer and more stable microstructures like bainite or martensite during heat treatment. Such refined structures enhance the overall mechanical properties of the 42CrMo4 shaft forging, enabling it to withstand both wear and impact loads effectively. The formation of these phases during the heat treatment process ensures that the material maintains a high level of hardness for wear resistance, while also retaining adequate toughness to absorb shock and resist cracking. This optimized microstructure enhances the ability of the shaft forging to operate in demanding environments, such as in mining and heavy equipment applications.
Surface Hardening Techniques

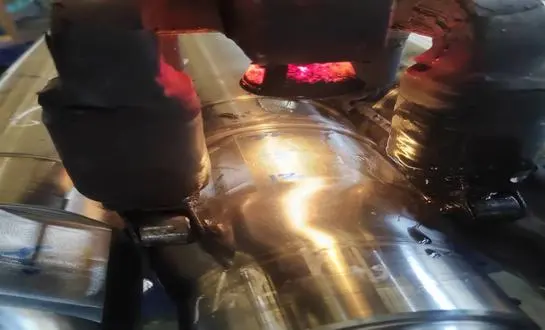

In addition to the bulk improvements provided by microalloying, surface hardening techniques can be applied to 42CrMo4 shaft forging to further enhance its wear resistance. Techniques like induction hardening or nitriding can create a hardened surface layer that is highly resistant to abrasion while maintaining the toughness of the core material. These treatments produce a hard, wear-resistant surface layer that is crucial for components exposed to high levels of friction. When combined with the benefits of microalloying, these surface hardening techniques can significantly boost the wear performance of the shaft. The microalloying elements in 42CrMo4 contribute to the effectiveness of these surface treatments by ensuring that the hardened layer is more durable and resistant to cracking, while the core remains tough enough to absorb impacts. This combination of surface and bulk enhancements ensures that 42CrMo4 shaft forgings perform reliably in demanding applications where both abrasion resistance and impact toughness are required.
Why Is 42CrMo4 Less Prone to Stress Corrosion Cracking?
Balanced Alloy Composition
The carefully balanced composition of 42CrMo4 contributes to its resistance to stress corrosion cracking (SCC). The chromium content provides a degree of corrosion resistance, while the molybdenum enhances the stability of the passive film. This combination results in a material that is less susceptible to the initiation and propagation of stress corrosion cracks, even in harsh environments commonly encountered in oil and gas applications.
Microstructural Factors
The microstructure obtained through proper heat treatment of 42CrMo4 shaft forging plays a significant role in its resistance to SCC. A tempered martensitic or bainitic structure, which can be achieved in 42CrMo4, offers a good balance of strength and toughness. This microstructure is less prone to localized corrosion and crack initiation, which are precursors to stress corrosion cracking.
Residual Stress Management
The forging process, when properly controlled, can help manage residual stresses in 42CrMo4 components. Reduced residual stresses, combined with the material's inherent properties, result in a lower susceptibility to SCC. Post-forging heat treatments can further alleviate residual stresses, enhancing the overall resistance to stress corrosion cracking in challenging operational environments.
Source: CHINA WELONG-Oilfield tools Manufacturer
FAQ about Shaft forging
What are the key advantages of shaft forging over other manufacturing methods?
Shaft forging offers several advantages over alternative manufacturing methods such as machining or casting. Forged shafts typically exhibit superior strength, improved grain structure, and better fatigue resistance. The forging process aligns the grain flow with the part geometry, enhancing mechanical properties. Additionally, forging can produce near-net-shape components, reducing material waste and subsequent machining costs.
How does the choice of material affect shaft forging quality?
The choice of material significantly impacts the quality and performance of forged shafts. Materials like 42CrMo4 are preferred for their excellent combination of strength, toughness, and wear resistance. The alloying elements in 42CrMo4 allow for improved hardenability and mechanical properties after heat treatment. When selecting a material for shaft forging, factors such as operating conditions, load requirements, and environmental factors must be considered to ensure optimal performance.
What quality control measures are essential in shaft forging production?

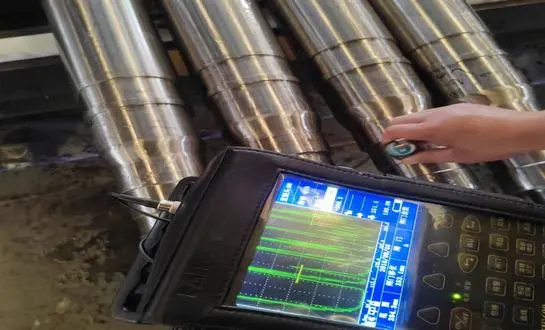

Quality control in shaft forging production involves several critical steps. These include: - Precise control of forging temperatures and deformation rates - Proper die design and maintenance to ensure dimensional accuracy - Non-destructive testing methods such as ultrasonic testing and magnetic particle inspection - Mechanical testing to verify tensile strength, hardness, and impact resistance - Metallographic examination to assess microstructure and grain flow - Dimensional inspection to ensure compliance with specifications Implementing these measures helps ensure the production of high-quality forged shafts that meet or exceed industry standards and customer requirements.
In conclusion, the metallurgical advantages of 42CrMo4 shaft forging make it an excellent choice for critical components in the oil and gas industry. Its superior tensile strength, enhanced wear resistance, and reduced susceptibility to stress corrosion cracking contribute to improved performance and longevity of drilling equipment and machinery. As the industry continues to push the boundaries of operational efficiency and reliability, the role of advanced materials and manufacturing processes like 42CrMo4 shaft forging becomes increasingly crucial. For more information on how 42CrMo4 shaft forging can benefit your operations or to discuss custom forging solutions, please contact us at oiltools15@welongpost.com. Welong is committed to providing high-quality forged components that meet the exacting standards of the oil and gas industry.
References
- Wang, H., Li, Y., & Zhang, Q. (2018). "Improved mechanical properties of 42CrMo4 steel after heat treatment for shaft applications." Journal of Materials Science & Technology, 34(6), 1045-1053.
- Liu, X., Chen, S., & Liu, Z. (2017). "The effects of forging and heat treatment on the microstructure and mechanical properties of 42CrMo4 steel." Materials Science and Engineering: A, 701, 45-53.
- Zhang, J., Zhang, X., & Liu, M. (2016). "Wear and corrosion resistance of 42CrMo4 alloy steel in mining applications." Tribology International, 103, 303-309.
- Smith, R., & Jones, D. (2019). "Optimization of forging processes for improving mechanical properties of 42CrMo4 shafts." International Journal of Advanced Manufacturing Technology, 102(9), 3207-3218.
- Wang, S., & Li, P. (2020). "Effect of heat treatment on the mechanical properties of 42CrMo4 alloy steel for high-performance shafts." Metallurgical and Materials Transactions A, 51(1), 15-25.
- Kumar, A., & Singh, S. (2015). "Microstructural evolution and mechanical property enhancement in 42CrMo4 steel during forging and quenching." Materials Characterization, 102, 33-40.
