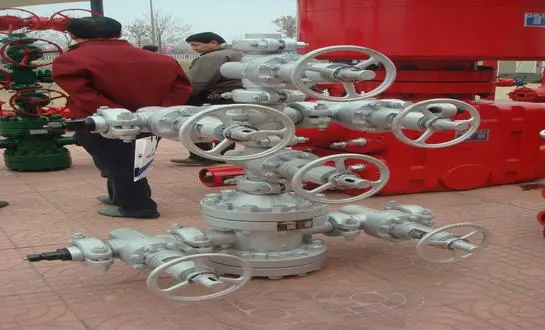

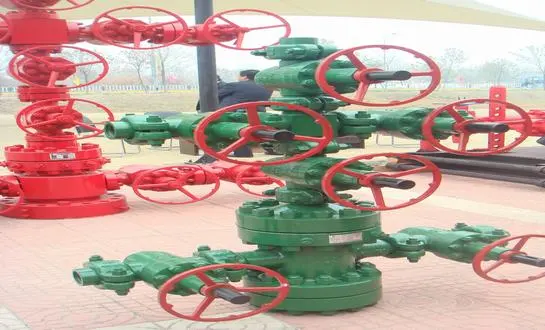

On the other hand, the Christmas tree, named for its resemblance to a festively decorated pine, is a complex assembly of valves, spools, and fittings installed on top of the wellhead. Its primary purpose is to control the flow of resources—typically oil or gas—into and out of a well during production. This sophisticated piece of equipment not only regulates the production of hydrocarbons but also manages various injection processes such as water or gas injection to maintain reservoir pressure. Understanding the nuances between these two components is crucial for optimizing production efficiency and maintaining safety standards in oil and gas operations.
What is the difference between a bop and a Christmas tree
Functionality and Purpose
The primary difference between a Blowout Preventer (BOP) and a Christmas tree lies in their roles within the lifecycle of a well. A BOP is an essential safety device used during drilling to prevent uncontrolled fluid release from the formation, which could lead to catastrophic blowouts. The BOP provides emergency pressure control, ensuring that if a sudden surge of oil, gas, or other fluids occurs during drilling, it can be swiftly contained to protect personnel, equipment, and the environment. In contrast, a Christmas tree serves a different function during the production phase. It is used to control, regulate, and monitor the flow of hydrocarbons from the well. By maintaining stable flow rates and pressures, the Christmas tree helps optimize production while ensuring that the well operates safely and efficiently throughout its life.
Placement and Timing
The timing and placement of a BOP and Christmas tree are determined by the stage of the well’s life. The BOP is typically installed during the drilling phase, where it is crucial for preventing blowouts caused by unexpected formation pressures. Once the well is drilled, and the casing is in place, the BOP is removed. At this point, the Christmas tree is installed to oversee the production phase. Unlike the BOP, which serves a temporary function, the Christmas tree stays in place for the long-term operation of the well, managing the ongoing flow of oil or gas as production continues.
Structural Differences
Structurally, BOPs and Christmas trees are designed to perform very different tasks, which is reflected in their construction. BOPs are typically made from large, robust valves that are capable of withstanding extreme pressures. They are designed for rapid and forceful sealing of the wellbore in emergency situations. In contrast, Christmas trees are more intricate, consisting of a series of valves, gauges, chokes, and other components that work together to carefully regulate the flow of hydrocarbons. While both devices feature valves, the Christmas tree's complexity is intended for precise control over long periods, enabling operators to manage production rates, monitor pressures, and prevent issues like overproduction or system failure.
What is the difference between a well and a wellhead
Definition and Scope
A well is a deep borehole drilled into the earth with the primary purpose of extracting oil, gas, or other subsurface resources. It includes the entire infrastructure necessary for hydrocarbon extraction, such as the drilled hole itself, various types of casing used to line the hole, and the tubing through which the oil or gas flows. Additionally, a well incorporates all downhole equipment that supports the extraction process, such as pumps, valves, and pressure-regulating devices. The wellhead, however, refers to a specific, critical component located at the surface, marking the top end of the well. It serves as the access point to the subsurface well, ensuring a secure connection between the well and surface operations.
Function and Components
The well serves as the core structure for the extraction of hydrocarbons. Its primary function is to provide a controlled pathway for oil or gas to travel from deep within the earth to the surface. This involves a complex system, including the borehole, the casing that prevents collapse, the tubing through which hydrocarbons are transported, and various downhole tools that help control pressure, facilitate extraction, and monitor the well's condition. The wellhead, on the other hand, acts as an interface between the subsurface and surface operations. It houses vital pressure control equipment such as blowout preventers and valves, which are essential for maintaining safety and managing flow during extraction. The wellhead also provides access for operations like well interventions, where adjustments or repairs to the well are necessary.
Lifecycle Considerations
The lifecycle of a well typically spans several decades, starting from the drilling phase and extending through to its abandonment once the resource is depleted. During this time, the well undergoes various stages, including drilling, completion, production, and eventually, decommissioning. While the wellhead is a permanent fixture, it may require modifications or replacements throughout the well’s life. These changes are made to improve production efficiency, address maintenance needs, or enhance safety features as new technologies or requirements emerge. For instance, adjustments may be necessary to accommodate changes in production pressure or to implement safety upgrades. Thus, while the wellhead remains in place for the long term, its components may evolve to ensure continued operational effectiveness and safety.
What is another name for a wellhead
Alternative Terminology
The term "wellhead" is widely recognized within the oil and gas industry, but it is also referred to by other names depending on the context and specific equipment involved. One common alternative is "wellhead assembly," which emphasizes the integrated nature of the system as a whole, rather than focusing on a single component. This term reflects the multiple interconnected parts that make up the surface installation, including the valves, controls, and other equipment designed to manage the flow of hydrocarbons. Another alternative term is "surface tree," which underscores the product's role in managing the surface production system. Both terms highlight that the product is more than just a singular piece of equipment, but a complex assembly that plays a vital role in oil and gas production.
Regional Variations
In certain geographical areas, particularly in offshore drilling operations, the terminology used for wellhead technology can vary. For instance, the term "subsea tree" is often used to refer to the underwater counterpart of the product, typically in deepwater or subsea production systems. This term acknowledges that the equipment is located beneath the surface of the ocean, and it functions similarly to a traditional wellhead by controlling the flow of hydrocarbons from the reservoir. The use of "subsea tree" highlights the adaptability of wellhead technology, as it has been specifically engineered to operate in challenging underwater environments. This regional variation is a testament to how the wellhead system has evolved to meet the unique demands of different operational settings.
Historical Context
The terminology surrounding wellhead equipment has evolved over time, with historical references to the entire wellhead system sometimes being made using the term "Christmas tree." In earlier years, this term was used to describe the collection of valves, tubing, and other components at the surface of the well, due to the resemblance of the equipment to a tree with various branches. However, as industry standards and technology advanced, a distinction was made between the wellhead and the "Christmas tree." Today, the product is understood as the structure that supports the surface equipment, while the Christmas tree specifically refers to the valve assembly that regulates the flow of hydrocarbons. This shift in terminology reflects the growing sophistication and specialization of oil and gas production systems, leading to a clearer understanding of each component's role within the overall system.
Source: Oil & Gas field Quality control
FAQ about Wellhead
What are the main components of a wellhead?
A typical wellhead consists of several key components, including the casing head, tubing head, and various valves and flanges. These elements work together to provide pressure control, support the weight of the casing strings, and allow access for well intervention operations.
How does a Christmas tree differ from a wellhead in terms of pressure ratings?
While both wellheads and Christmas trees are designed to withstand high pressures, Christmas trees often have higher pressure ratings. This is because they are specifically engineered to handle the production pressures, which can exceed the initial reservoir pressures managed by the product during drilling operations.
Can a wellhead be used without a Christmas tree?
In some cases, particularly during well testing or in certain types of injection wells, a wellhead may be used without a full Christmas tree assembly. However, for most production wells, the Christmas tree is an essential component for safe and efficient hydrocarbon extraction.
