What are the common problems and solutions of Float Shoe?

A Float Shoe is a vital component in the cementing process of oil and gas wells, designed to prevent backflow and manage pressure during cement placement. Notwithstanding its vital role, the Float Shoe may encounter a number of problems that reduce its effectiveness. These difficulties include everything from backflow and obstructions during drilling to cementing leaks and float valve malfunctions. To guarantee that your well construction procedure runs smoothly, it is crucial to comprehend prevalent problems and know the appropriate fixes.

Backflow, clogging, cementing leaks, and pressure control problems are the most common issues with Float Shoes. Operators may reduce expensive downtime and raise the general safety and effectiveness of drilling operations by tackling these issues with preventative measures, appropriate troubleshooting, and prompt repair. Despite being unique, each issue may typically be lessened with the appropriate strategy and tools.

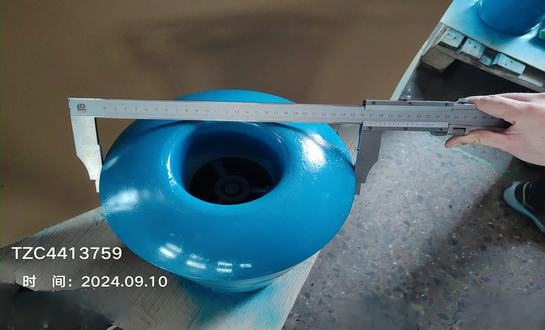

How Can Backflow Issues in Float Shoes Be Prevented?

Backflow in Float Shoes can have serious consequences, compromising the integrity of the well and causing needless delays in drilling operations. It happens when cement or drilling fluids reverse flow into the casing, resulting in incorrect cement placement, well contamination, and eventually cement job failure.

Preventive Actions

Correct Float Shoe Selection: The first step in preventing backflow is to make sure the proper Float Shoe is chosen according to the particular needs of the well. By keeping a tight seal during cementing, a Float Shoe with the right float valve size can prevent backflow.

Pressure Monitoring: Keeping an eye on the pressure when gluing is essential. Unusual variations in pressure could be a sign of a possible backflow problem. Operators can identify anomalies early and take corrective action before a major backflow event happens by utilizing real-time monitoring technology.

Proper Cementing Technique: Backflow can also be avoided by following the right cementing procedures, which include regulating the cement pumping rate and keeping an eye out for leaks or pressure decreases. A gradual, steady cement job will lessen the chance of backflow.

Float Shoe Design Considerations: The risk of backflow can be considerably decreased by choosing a float shoe with the proper requirements, which come in a variety of forms. An additional layer of protection against backflow can be achieved, for example, by utilizing a positive shutdown float shoe, in which the valve closes tightly when no cement is flowing. The purpose of these Float Shoes is to guarantee that the valve stays sealed during times of low pressure, avoiding any undesired reverse flow.

Proper Installation: A poorly installed Float Shoe can result in improper sealing, which allows fluids to flow back into the well. To prevent this, make sure the Float Shoe is properly seated and aligned on the casing before starting the cement job. Additionally, make sure the valve mechanism is intact and operating at its best during installation.

Handling of Temperature Variations: Backflow can also be caused by temperature fluctuations: rapid temperature changes can cause the materials in the Float Shoe to expand or contract, which can lead to pressure changes that can cause backflow. To reduce this risk, it is important to keep an eye on temperature variations and, if possible, modify the cementing process accordingly. For deeper wells or extreme conditions, specially designed high-temperature float shoes may also be necessary to prevent problems associated with temperature changes.

Extra Prevention Advice

Pre-Job Testing: Before cementing starts, pre-job testing can be performed to make sure the float valve is functioning properly and to detect any wear or tear in the valve mechanism.

Use of Additional Equipment: Some operators employ one-way valves or pressure relief valves that are attached to the Float Shoe for further security against backflow.

Backflow can be avoided, guaranteeing a successful cement work and maintaining well integrity during the drilling process, by making sure the Float Shoe is properly built, placed, and operated.

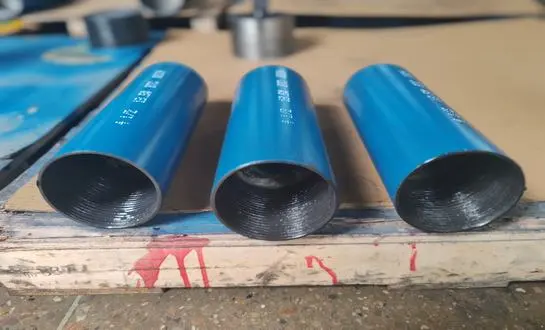

What to Do if a Float Shoe Gets Blocked During Drilling?

Blockages in a Float Shoe during drilling can create substantial delays, delaying the operation and potentially resulting to dangerous situations. Blockages often occur when debris, cement, or other particles from the drilling fluid accumulate inside the float valve, preventing it from functioning correctly. This may result in pollution of the wellbore, problems with pressure management, and inadequate cementing.

Early detection of blockage symptoms and prompt resolution are critical to preventing these disturbances. The following are some typical reasons why float shoe obstructions occur, along with the best fixes:

1. Examine the drilling fluid first: The likelihood of blockages is significantly influenced by the drilling fluid's composition and cleanliness. Large particles, sediments, or pollutants in the fluid could become lodged in the Float Shoe's valve. This can be avoided by routinely checking the drilling fluid's quality and making sure it has been adequately filtered before being pumped into the well. Blockages can be less likely if big particles are removed from the fluid using a centrifuge or shale shaker.

2. Increase Fluid Velocity: Increasing the fluid velocity can aid in clearing the debris from the valve if a blockage is suspected. Usually, this is accomplished by varying the pump rate while drilling. To make sure the higher flow rate doesn't result in backflow or other pressure-related problems, care should be taken. Without compromising the well's overall stability, the obstruction must be removed.

3. Use Specialized Equipment: Certain gadgets are developed to eliminate blockages in Float Shoes without the need to extract the shoe from the wellbore. For example, a drillable float valve is specifically intended to be removed by drilling away the blockage with minimal downtime. A specialized drill bit made for the job can help break through the debris and recover the float valve's functionality if the obstruction is significant and cannot be removed with increased fluid velocity.

4. Flushing with Clean Fluids: If obstructions arise, think about cleaning the Float Shoe using a fluid free of debris to get rid of any accumulated debris. This can be completed before to starting cementing operations. Furthermore, preventing particles from first entering the Float Shoe valve can be achieved by circulating clean fluid around the wellbore prior to cementing.

5. Pressure Relief: Sometimes, blockages are caused by pressure building within the float valve, which may cause it to stick or get blocked. A pressure relief valve can assist alleviate this buildup by allowing excess pressure to escape. Blockages brought on by pressure extremes can be avoided by operators by keeping an eye on the pressure and releasing it when needed.

6. Valve Design Considerations: It would be worthwhile to look into Float Shoes with sophisticated valve systems that are less likely to clog if blockages happen frequently. Certain Float Shoes have multi-port or auto-drain valves, which improve fluid circulation and reduce the possibility of debris accumulation inside the valve. Selecting a premium float shoe with these characteristics can lower the possibility of obstructions and guarantee more efficient drilling operations.

7. Regular Maintenance and Inspection: As with backflow prevention, Float Shoes must be regularly inspected and maintained to avoid blockages. By checking the valve for wear and tear, clearing out any debris, and replacing any damaged parts, you can keep the Float Shoe in top operating shape.

Blockages in the Float Shoe can be avoided or successfully handled if they do occur by carefully managing the drilling fluid, using specialized equipment, and conducting routine inspections. Planning and proactive maintenance are essential to preventing expensive delays and guaranteeing that your drilling operation runs as smoothly as possible.

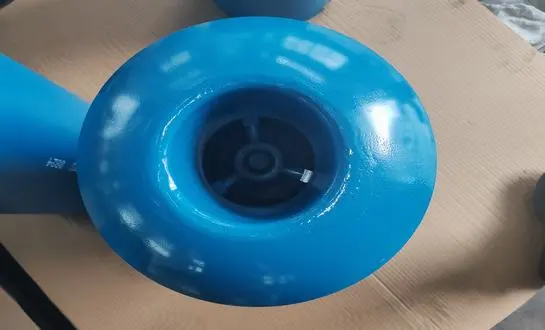

What Are the Solutions for Float Shoe Leaks During Cementing?

A major problem that can jeopardize well integrity and cause drilling delays is leaks in the float shoe during cementing operations. Ineffective cement laying from a leaking Float Shoe can result in inadequate zonal isolation, possible contamination, and a higher chance of well failure. Leaks in Float Shoes can be caused by a number of things, including external damage, worn-out parts, and incorrect installation. Finding and fixing these breaches as soon as possible is crucial to preventing more issues.

The following list of typical reasons for Float Shoe leakage includes the best fixes:

1. Incorrect Float Shoe Installation: One of the most frequent causes of Float Shoe leaks is incorrect installation; if the Float Shoe is not seated correctly on the casing, it may create gaps that let cement or fluid escape. To prevent this, it is essential to make sure the Float Shoe is properly aligned and secured before beginning the cementing process. Verifying the fit and making sure all seals are in place can help prevent leaks caused by installation errors.

2. Worn-Out Seals and Valves: Over time, particularly in high-pressure and high-temperature environments, the seals and valves inside the Float Shoe may wear out and develop leaks. To prevent this, it is crucial to inspect and maintain Float Shoes on a regular basis, replacing any worn-out parts prior to use. Some Float Shoes have replaceable valve elements or rebuildable seals that make maintenance simple and lower the likelihood of leaks.

3. Fluid Pressure Imbalance: Keeping the fluid pressure within the recommended range for the Float Shoe is crucial to preventing leaks during cementing. If the pressure inside the wellbore is higher than the Float Shoe's pressure rating, the shoe may leak. If pressure buildup becomes an issue, a pressure relief valve or float valve with a higher pressure rating can help prevent leaks due to excess pressure.

4. Cement contamination: If the cement contains too much water, gas, or solids, it may not bond with the casing properly, causing leaks around the Float Shoe. To avoid this, make sure the cement mixture is free of contaminants and that the right additives are used to achieve the desired consistency. It's also crucial to use clean, filtered drilling fluids to prevent contaminants from entering the wellbore during the cementing operation.

5. Problems with Float Shoe Design: Some Float Shoes are more likely to leak than others, especially if they have inadequate or weak valve seals. It is important to select a Float Shoe with an improved valve design that is specifically designed to withstand leaks. High-performance float shoes with cutting-edge sealing technology, like double-valve systems or pressure-compensated designs, can offer better sealing and lower the risk of leaks.

6. Examining for Damage: If the Float Shoe sustains external damage, it may also develop cracks or fractures that result in leaks. If the shoe is dropped or handled improperly during transportation or installation, it may develop cracks or fractures that cause leaks. It is crucial to check the Float Shoe for any physical damage before using it, and any damaged Float Shoes should be replaced before cementing operations to prevent leaks.

7. Use of Leak Prevention Additives: In some situations, operators can use leak-prevention additives in the cement slurry to strengthen the sealing ability of the Float Shoe and lower the likelihood of leaks. These additives are meant to enhance the bonding capabilities of the cement and improve its resistance to fluid migration. They work well when combined with other preventive measures, but they shouldn't be used as a stand-alone remedy.

Operators can greatly lower the danger of leaks during cementing by addressing these typical sources of Float Shoe leaks and putting the right solutions in place. A successful cementing operation depends on careful pressure management, frequent maintenance, proper installation, and the use of premium materials. Leaks can be prevented with the correct measures, guaranteeing the integrity of the well and increasing the drilling operation' overall efficiency.

How to Troubleshoot Float Shoe Pressure Control Problems?

An essential component of float shoe operations is pressure control. Equipment damage, well control problems, and operational delays can result from improper pressure management.

Typical Problems with Pressure Control

Inaccurate Pressure measurements: Inaccurate pressure measurements might complicate operations due to malfunctioning sensors or defective gauges.

Valve malfunctions: The float shoe's valve may not be able to adequately control pressure.

Formation-Related Pressure Variations: The operation of float shoes may be impacted by pressure variations between the wellbore and the formation.

Steps to Troubleshoot

Check Sensor Accuracy: To guarantee precise readings, calibrate pressure sensors and gauges on a regular basis. Any defective equipment should be replaced right away.

Examine the Float Shoe Valve: Look for any damage, debris, or incorrect seating that would impair the valve's capacity to control pressure.

Control Circulation Rates: To maintain pressure stability and avoid abrupt swings, modify the drilling fluid circulation rates.

Monitor Wellbore Conditions: To identify and manage formation-related pressure fluctuations early on, use sophisticated monitoring devices.

Pressure Relief Measures: To safeguard the float shoe and other equipment in situations when there is an excessive buildup of pressure, put pressure relief measures in place.

Operators can handle pressure-related issues and guarantee safe and successful operations by using these troubleshooting techniques.

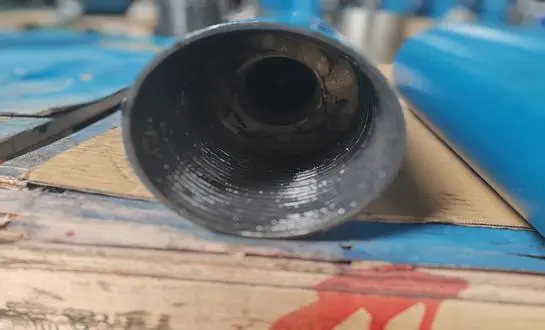

What Are the Most Frequent Installation Issues with Float Shoes?

Backflow and early equipment failure are only two of the many operational issues that can result from improper float shoe installation.

Common Issues with Installation

Inadequate Cleaning: If the casing and float shoe are not thoroughly cleaned, debris may interfere with the float shoe's functionality.

Improper Threading: Cross-threading or insufficient torque during installation may jeopardize the float shoe's connection to the casing.

Misalignment: Incorrect alignment of the float shoe may result in uneven cement placement and operational inefficiencies.

Ways to Ensure Correct Installation

Alignment Tools: To make sure the float shoe and casing are precisely aligned, use alignment tools.

Threading Instructions: To ensure a secure connection, adhere to the manufacturer's threading and torque recommendations.

Thorough Cleaning: Clean all components rigorously before installation to remove debris and pollutants.

Expertise and Training: Verify that installation is carried out by qualified individuals who are acquainted with the best methods for setting up float shoes.

To maximize the effectiveness and dependability of float shoes in drilling and cementing operations, proper installation techniques are crucial.

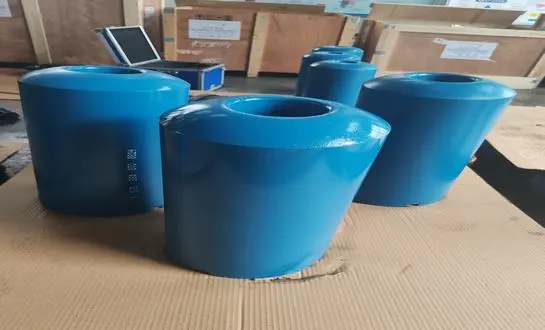

How to Handle Malfunctions in the Float Valve of a Float Shoe?

Since the float valve is the central component of the float shoe, any malfunction could impair well integrity and cause operational disruptions.

Typical Float Valve Issues

Sticking of the valve: If debris or solidified cement builds up, the valve may become stuck and not work properly.

Seal Failure: Backflow or pressure imbalances may result from fluid evading the valve due to worn or defective seals.

Structural Damage: The valve's ability to function may be jeopardized by cracks or other flaws.

Remedies for Float Valve Issues

Frequent Maintenance: To avoid debris accumulation and guarantee smooth operation, examine and clean the float valve on a regular basis.

Seal Replacement: To preserve valve integrity, replace worn or damaged seals as soon as possible.

High-Quality Components: Use valves produced from sturdy materials capable of withstanding hard environments.

Troubleshooting Tips: To remove a stuck valve without causing more harm, use mechanical tools or controlled pressure.

Operators can preserve productivity and prevent expensive operating delays by quickly fixing float valve issues.

Conclusion

Float shoes play a crucial role in drilling operations by guiding the casing through the wellbore, preventing backflow, and maintaining pressure control. Like any other piece of equipment, they are prone to a number of problems that could impair their functionality. Operators can increase the dependability and effectiveness of their drilling operations by comprehending and resolving frequent concerns like backflow, blockages, leaks, pressure control problems, installation mistakes, and valve failures. The effectiveness of cementing operations and the optimization of float shoe performance depend on quick troubleshooting, correct installation, and routine maintenance.

Get in touch with Welong at oiltools15@welongpost.com to find out more about our products if you're searching for premium float shoes and other oilfield supplies.
