Backup rolls ensure that the work rolls, which directly contact the steel, maintain their integrity under the immense pressure of the rolling process. By providing a solid foundation, backup rolls contribute significantly to the dimensional accuracy and surface quality of the final steel product. They help distribute pressure evenly across the work rolls, preventing uneven material thickness and surface defects that could compromise the end product's quality. In hot rolling operations, where steel is heated to high temperatures before processing, backup rolls must withstand extreme heat and heavy loads, making their role even more critical.
What is the primary function of a backup roll in steel rolling?
Supporting Work Rolls
The primary role of a backup roll in steel rolling mills is to provide essential support to the work rolls. These backup rolls, which are significantly larger and stronger than the work rolls, help prevent any bending or deflection of the work rolls under the immense pressure and forces exerted during the rolling process. Without backup rolls, the work rolls would be unable to withstand the high stresses involved in rolling thick metal sheets or plates. The presence of backup rolls ensures that the work rolls maintain their structural integrity, allowing them to effectively perform their task of shaping and thinning the steel. Moreover, they ensure that the distribution of pressure is even, which is vital for the uniformity of the final product. Without this balance and support, the work rolls would quickly degrade or become misaligned, leading to defects in the rolled product.
Maintaining Roll Stack Stability
Backup rolls are integral in maintaining the overall stability of the roll stack. In most steel rolling mills, especially in a four-high rolling mill configuration, two backup rolls are positioned above and below the work rolls. This arrangement contributes to a stable, rigid structure that is capable of handling the high forces encountered during the rolling process. The stability of the roll stack is crucial in ensuring precise control of the thickness and shape of the rolled steel. If the roll stack is unstable, it can lead to uneven pressure distribution, resulting in defects like thickness variations, waviness, or poor surface quality. Thus, backup rolls are indispensable in providing the necessary rigidity to maintain the quality and precision of the final rolled product.
Absorbing Rolling Forces
An essential function of backup rolls is their ability to absorb and distribute the immense forces generated during the rolling process. As steel is fed through the mill, the work rolls experience high pressure from the metal, which can lead to deformation if not properly managed. The backup rolls serve as a counterbalance, absorbing much of the pressure and ensuring that the forces are evenly spread across the mill rolls. This not only prevents excessive wear and deformation of the work rolls but also helps in maintaining uniform thickness and flatness of the rolled steel. The even distribution of pressure across the entire width of the steel strip ensures a consistent product quality, which is essential for industries requiring precise material specifications. In essence, backup rolls act as a shock absorber, mitigating the intense forces and contributing to the stability and efficiency of the rolling process.
How do backup rolls enhance the precision of metal sheets?
Ensuring Uniform Thickness
Backup rolls play an essential role in ensuring the precision and consistency of metal sheets, particularly when it comes to achieving uniform thickness. As the rolling process involves applying high pressure to the metal, backup rolls provide vital support to the work rolls, helping them maintain their shape and distribute pressure evenly across the width of the sheet. Without the support of backup rolls, the work rolls might experience deformation, leading to uneven pressure distribution, which would result in thickness variations throughout the sheet. Achieving a uniform thickness is crucial in various industries, such as automotive manufacturing and aerospace, where precise metal tolerances are required for the production of high-performance components.
Improving Flatness and Shape Control
In addition to thickness consistency, backup rolls are instrumental in improving the flatness and shape of the metal sheet. By ensuring that the work rolls remain stable throughout the process, backup rolls prevent distortion, bending, or any unwanted deformation that could compromise the sheet’s final geometry. The ability to maintain flatness is especially important for industries that demand high precision, such as the production of steel used in electrical transformers or components for aerospace applications. Even minor deviations in flatness can affect the performance and functionality of the end product, making mill rolls indispensable for maintaining the integrity of the metal sheet.
Minimizing Surface Defects
Another significant advantage of backup rolls is their role in minimizing surface defects on metal sheets. Surface quality is a critical factor in many applications, where the appearance and integrity of the metal must meet specific standards. Backup rolls help to prevent localized pressure variations, which can otherwise cause imperfections like scratches, dents, or unevenness on the metal surface. By providing consistent support, backup rolls ensure that the work rolls exert a uniform pressure, preventing any disturbances that might lead to surface flaws. This is especially important in industries where the visual and structural quality of the metal is paramount, such as the manufacturing of automotive body panels or architectural materials. A smooth, defect-free surface is often essential for both functional and aesthetic reasons, and backup rolls contribute significantly to achieving this level of quality.

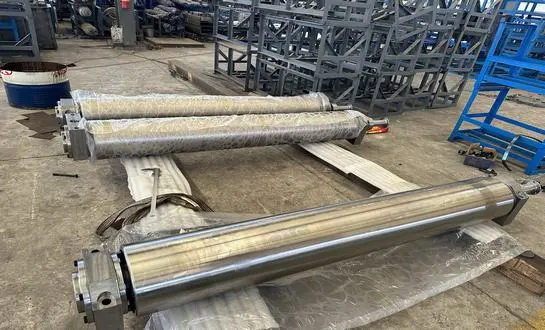

Materials commonly used in manufacturing backup rolls
High-Chromium Steel
High-chromium steel is a popular material choice for manufacturing backup rolls due to its excellent wear resistance and thermal stability. The high chromium content (typically 3-5%) contributes to the formation of hard carbides in the steel matrix, enhancing the roll's resistance to abrasion and thermal fatigue. This material is particularly well-suited for hot rolling applications where the mill rolls are exposed to elevated temperatures and aggressive wear conditions.
Forged Steel
Forged steel is another common material used in the production of backup rolls, especially for larger diameter rolls used in heavy-duty rolling mills. The forging process improves the steel's mechanical properties, resulting in a more uniform and dense microstructure. This enhanced structure contributes to better wear resistance, improved toughness, and higher load-bearing capacity, making forged steel backup rolls ideal for demanding rolling applications.
Cast Iron with Special Alloys
Cast iron, often alloyed with elements such as nickel, chromium, and molybdenum, is used in the manufacture of some backup rolls. These alloys enhance the cast iron's wear resistance, thermal stability, and mechanical properties. Cast iron backup rolls are typically used in applications where the rolling loads are moderate, and cost-effectiveness is a significant consideration. The addition of special alloys helps to improve the roll's performance and longevity in various rolling conditions.
Source: CHINA WELONG-Oilfield tools Manufacturer

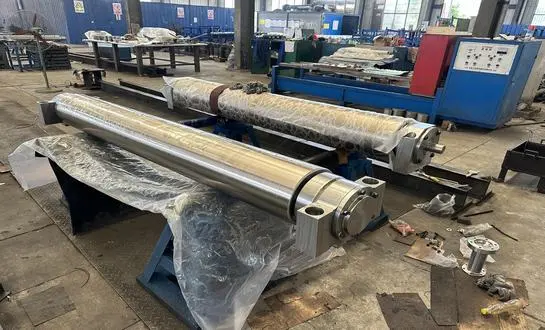

FAQ about Mill Rolls
What is the difference between work rolls and backup rolls?
Work rolls are the primary rolls that come into direct contact with the metal being processed. They are typically smaller in diameter and are responsible for applying pressure and shaping the metal. Backup rolls, on the other hand, are larger in diameter and do not directly contact the metal. Their primary function is to support the work rolls, prevent deflection, and help distribute the rolling forces evenly.
How often should backup rolls be replaced or refurbished?
The frequency of backup roll replacement or refurbishment depends on several factors, including the type of steel being rolled, the rolling mill's operating conditions, and the roll material. Generally, backup rolls have a longer service life compared to work rolls due to less direct wear. However, they still require regular inspection and maintenance. Depending on the application, backup rolls may need to be reground or replaced after several months to a year of continuous operation.
Can backup rolls affect the final product quality?
Yes, backup rolls can significantly impact the final product quality. While they don't directly contact the metal being rolled, their condition and performance directly influence the work rolls' ability to maintain proper shape and apply consistent pressure. Issues with backup rolls, such as excessive wear or misalignment, can lead to problems in the final product, including thickness variations, poor surface finish, and shape defects.
In conclusion, backup rolls are integral components in the steel rolling process, playing a crucial role in ensuring the quality and precision of metal sheets. Their primary functions of supporting work rolls, maintaining roll stack stability, and absorbing rolling forces contribute significantly to the production of high-quality steel products. By enhancing the precision of metal sheets through uniform thickness control, improved flatness, and minimized surface defects, backup rolls prove their importance in various industries relying on precise metal forming. The choice of materials for manufacturing backup rolls, such as high-chromium steel, forged steel, and specially alloyed cast iron, further underscores the technical considerations involved in optimizing rolling mill performance. Founded in 2001, China Welong is a professional international integrated supply chain service provider. Strict quality control enables us to win good name with endurable products. For more information about mill rolls and other oilfield products, please contact us at oiltools15@welongpost.com.
