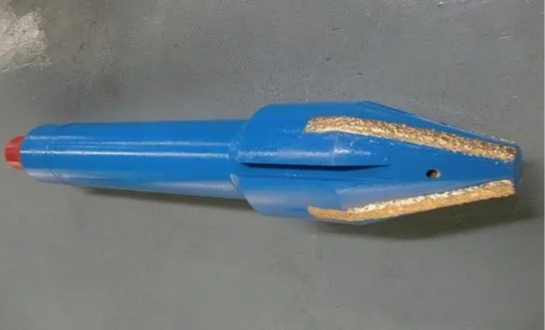

Design and Construction of Taper Mills
Durability and Material Selection
To endure the severe circumstances found in oil and gas operations, taper mills are made from premium materials. Typically, alloy steel is used to construct the taper mill's body since it offers exceptional strength and durability. For increased cutting efficiency and wear resistance, the cutting structure is frequently made up of diamond-impregnated segments or tungsten carbide inserts. Because of its sturdy design, taper mills can continue to function effectively even in wellbores' high temperatures, high pressures, and abrasive conditions.
A Look at Geometric Factors
To maximize its performance, a taper mill's design includes exact geometric calculations. To balance cutting efficiency with the capacity to maneuver through constrained wellbore sections, the taper angle—which indicates the rate at which the mill's diameter increases from top to bottom—is carefully engineered. Furthermore, the length-to-diameter ratio is adjusted for particular uses, guaranteeing that the mill can interact with the target region efficiently while remaining stable while in use. The mill's capacity to effectively clear obstacles and extend wellbores depends on these geometric factors.
Personalization Choices
It is possible to modify taper mills to satisfy particular operational needs. Manufacturers provide a range of cutting structure alternatives, such as alternative cutting materials like polycrystalline diamond compact (PDC) elements or varied designs of tungsten carbide inserts. The expected kind and amount of material to be removed can be used to optimize the junk slot arrangement, which permits the evacuation of milled debris. Additionally, taper mills can be built with specific features like stabilizer pads for better centering inside the wellbore or fluid apertures for better cleaning. Operators can choose the best taper mill configuration for their unique downhole problems because to this modification flexibility.
Applications in Oil and Gas Operations
Activities Related to Fishing
Fishing operations are one of the main uses for taper mills in oil and gas operations. Taper mills are used to clean around the fish (stuck object) and make a smooth transition for later retrieval tools when downhole tools or equipment become lodged in the wellbore. The mill can progressively interact with the fish thanks to its tapered shape, which lowers the possibility of more issues. Taper mills greatly increase the success rate of fishing operations by efficiently clearing debris and paving the way, reducing expensive downtime and the possibility of well abandonment situations.
Repair and Restoration of Casing
In tasks involving casing preservation and repair, taper mills are essential. Taper mills can be used to restore the original casing diameter in situations where the casing has collapsed or distorted as a result of corrosion or formation stress. Damaged parts of the casing are removed during the milling process, leaving a smooth surface for ensuing repairs such as liner installs or casing patches. To preserve wellbore integrity and increase the oil and gas wells' productive life, taper mills are essential.
Cleaning and Conditioning of Wellbore
Wellbores frequently need to be thoroughly cleaned and conditioned before operating completion equipment or performing workover operations. To efficiently remove scale, cement, and other debris that may have been collected on the casing or open hole walls, taper mills are essential to this procedure. To provide thorough cleaning without endangering the formation or already existing infrastructure, the tapered design permits gradual interaction with the wellbore surface. Operators can increase the effectiveness of follow-up interventions and improve overall well performance by using taper mills in wellbore cleanup operations.
Operational Considerations and Best Practices
Planning Ahead and Choosing the Right Tools
Careful pre-job planning is the first step toward the successful use of taper mills in oil and gas operations. This entails a thorough examination of the wellbore conditions, including the kind and position of any damage or obstruction that has to be fixed. Depending on the particular needs of the task, operators must carefully choose the right taper mill size, cutting structure, and related bottomhole assembly parts. To maximize the milling process, variables like wellbore shape, expected debris composition, and operational limitations must be taken into account. To make sure that the chosen taper mill configuration fits the project goals and operating constraints, cooperation between engineering teams and service suppliers is crucial.
Monitoring and Operational Factors
Maintaining ideal operating settings during taper milling operations is essential to getting the intended outcomes while lowering the possibility of issues. The circulating fluid characteristics, bit weight, and rotating speed are important variables to keep an eye on. To guarantee efficient cutting without producing too much heat or vibration, the rotating speed needs to be properly regulated. Applying weight to the bit progressively will enable controlled interaction with the target area. Maintaining wellbore stability, moving cuttings, and cooling the mill all depend on proper fluid circulation. Throughout the milling process, operators can make well-informed judgments and modifications thanks to real-time monitoring of key parameters and surface indicators like torque and drag.
Post-Work Assessment and Takeaways
A comprehensive post-job evaluation is necessary once taper milling operations are finished to optimize future interventions and ensure continual improvement. An examination of the recovered mill to determine wear trends and cutting effectiveness should be part of this assessment. To confirm the efficiency of the milling operation and find any lingering issues, downhole recording equipment might be employed. The best practices for taper mill applications in oil and gas operations should be developed by documenting and incorporating the lessons learned from each job into future planning procedures. Operators can continuously improve their capacity to handle challenging downhole problems with taper mills thanks to this iterative approach to knowledge management.
Conclusion
In the oil and gas sector, taper mills are indispensable and adaptable instruments that provide answers for a variety of downhole problems. They are vital for wellbore conditioning, casing maintenance, and fishing operations due to their distinctive design and adaptable features. Operators can optimize production and preserve well integrity by being fully aware of the design concepts, applications, and operational issues related to taper mills. Please email us at oiltools15@welongpost.com for additional information about taper mills and how they are used in oil and gas operations.
