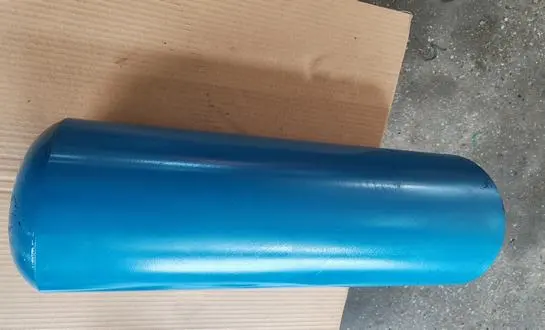

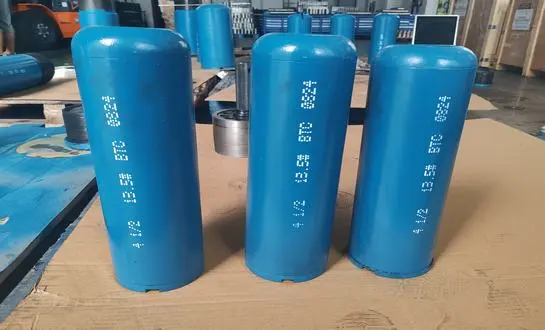

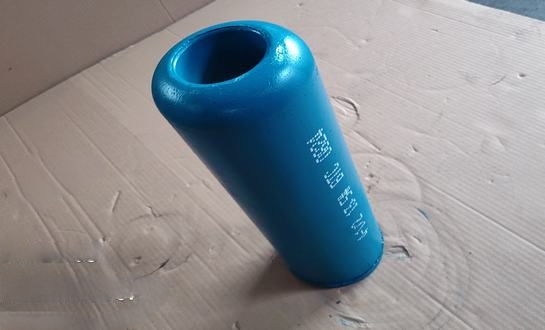

What is Float Shoe?

In the oil and gas sector, a float shoe is a crucial part of the well construction procedure. Its main objective is to ensure well integrity and provide a secure seal by facilitating the wellbore's successful cementing. The float shoe, which is positioned at the bottom of the casing string, has a non-return valve that only permits fluids to flow into the well. This stops drilling fluids, like mud, from flowing backwards while cementing.

Achieving proper zonal isolation is crucial for preserving well integrity and preventing fluid migration between formations. The float shoe makes sure that cement stays in place when it is pumped into the wellbore and does not mix with drilling fluids, which could compromise the cement's strength and bonding.

In summary, the float shoe is designed to offer pressure control throughout the cementing phase, avoid contamination of cement, and ensure a stable wellbore that can securely house the casing.

Float Shoe Is Made of Durable, High-Strength Materials

The materials used in a float shoe's construction have a significant impact on both its appearance and functionality. The float shoe needs to be constructed from long-lasting, high-strength materials to provide dependability because it is subjected to harsh downhole conditions, such as high pressure, high temperature, and abrasive surroundings.
Steel alloys such as chrome-moly steel are often utilized for their ability to resist corrosion, wear, and impact. These materials are robust enough to endure the mechanical strains that come with cementing and drilling. Furthermore, hard-faced carbide or ceramic materials, which provide exceptional resistance to wear and damage from harsh chemicals and high temperatures, are frequently used to make the float shoe's components, including the non-return valve.

Additionally, composite materials have gained popularity in contemporary float shoe designs. These materials offer superior corrosion resistance, particularly when drilling through highly acidic or salty formations, and are frequently utilized when drilling in difficult environments where traditional steel alloys may not offer adequate protection. Additionally, the thread design and sealing components of the float shoe are made of high-strength materials to ensure a secure fit within the casing string and to prevent fluid leakage. The float shoe's durable construction ensures that it can withstand the most demanding drilling conditions, making it an essential part of any well construction project.

Float Shoe Is Used in Well Drilling Operations

After drilling a well to the desired depth, the next important step is to install the casing, which is a steel pipe that lines the wellbore, providing structural integrity and preventing the well from collapsing, as well as helping to isolate different geological formations to prevent contamination. However, in order for the casing to be securely placed and effective, it must be properly installed and sealed, which is where the float shoe comes in and plays a crucial role.

The float shoe is positioned at the bottom of the casing string. As the casing is lowered into the wellbore, the float shoe assists to guide it into position, ensuring it lines appropriately with the wellbore. The non-return valve, which stops well fluids from flowing back up the casing string, is a crucial component of the float shoe. During the cementing process, when cement slurry must flow downward into the annular gap between the casing and the surrounding formation, this is particularly crucial. The float shoe guarantees that the cement slurry stays in place and doesn't obstruct the sealing process by stopping drilling fluid backflow.

The float shoe also plays an important role in helping to ensure proper zonal isolation, which is essential for preventing fluids from migrating between different geological layers or formations. Without zonal isolation, undesirable fluids or gases could migrate into areas of the well that need to stay sealed. The cementing process helps to create a strong barrier between different formations, which keeps the well stable over time and protects the integrity of the wellbore.

The float shoe is crucial to well drilling operations because it supports the well's structural integrity, prevents fluid migration, and ensures a successful cementing job—all of which are critical for preserving the well's longevity and safety throughout its life cycle. In addition to its role in cementing, the float shoe also helps to ensure the well's overall structural soundness by ensuring proper cement flow and preventing contamination, which keeps the casing securely in place and the well sealed, top to bottom.

Float Shoe Ensures Proper Well Integrity

The ability of a well to maintain pressure containment and fluid containment within the wellbore while preventing the undesired migration of fluids or gases into surrounding rock formations or to the surface is known as well integrity, and in the context of drilling, this integrity is critical not only for operational efficiency but also for environmental protection and cost management. Well integrity is one of the most important roles of the float shoe and is essential for the long-term safety and success of oil and gas drilling operations.

In order to prevent fluids like water, gas, or oil from migrating between different zones in the wellbore, cement is pumped into the annular space between the casing and the rock formation to create a secure bond. When cement is placed correctly, it ensures that the casing is firmly secured within the wellbore, providing a barrier to fluids and pressure and maintaining the overall stability of the well. Thus, the float shoe is essential to maintaining well integrity during the cementing process.

One of the key features of the float shoe is the non-return valve. This valve prevents backflow of drilling mud, fluids, or other materials that could mix with the cement during the placement process. Without the float shoe, any unwanted backflow could contaminate the cement, compromising its effectiveness. If the cement job is not executed properly due to contamination or improper placement, the integrity of the well would be at risk. A poor cement job could result in fluid leakage into undesired zones, causing potential environmental hazards or even well failure. Furthermore, it could lead to increased operational costs as additional remedial work would be required to fix the problem.

The float shoe not only prevents contamination of the cement job but also guarantees appropriate zonal isolation. This is essential for preserving the division of various geological layers and guaranteeing that fluids are kept inside their designated zones. Unwanted fluid migration could happen in the absence of adequate zonal isolation, which could lead to production issues or contaminate neighboring water supplies or other environmental resources.

The float shoe is not just a part of the drilling process; it is a crucial component in the safe and effective operation of oil and gas wells throughout their entire lifecycle. This is because it helps protect the well's structural integrity and the surrounding environment by maintaining a secure seal and ensuring proper zonal isolation. A well with good integrity is more likely to produce oil and gas safely, minimizing environmental risks and lowering the likelihood of costly repairs or remediation later in the well lifetime.

Float Shoe Prevents Backflow of Drilling Fluids

Preventing drilling fluid backflow during the cementing process, a crucial stage in well construction, is one of the float shoe's primary roles. Backflow is a phenomena that can contaminate the cement slurry being injected into the casing by pushing fluids, including drilling mud, back into the wellbore. Weak bonding and inadequate zonal isolation might result from this pollution, which can negatively impact the cement job's quality. Maintaining well integrity requires a strong, impermeable barrier between the formation and the casing, which may not be formed if the cement slurry is diluted or combined with undesirable substances.

When the cement slurry is pushed into the casing, a non-return valve on the float shoe automatically closes. This valve is made to function in high-pressure environments and stop fluids from flowing backward into the casing from the wellbore. This guarantees that the cement slurry will not become contaminated and will be able to set and adhere to the casing in a strong manner. The non-return valve is essential because it immediately stops drilling fluids from flowing backward, which would otherwise hinder the cement's ability to do its function.

Without the float shoe, there would be no way to regulate the flow of fluids after the cement has been injected into the well. After cementing, drilling mud, which is frequently used in the drilling process, could return to the casing, mixing with the slurry and lowering its quality. This could result in incomplete or ineffective sealing, which could have negative effects on production and the environment, such as fluid migration between geological formations. In addition, it could cause wellbore instability and future well failure risks.

By successfully preventing backflow, the float shoe ensures that the cement slurry is placed as intended, securing the casing in place and isolating different fluid zones in the wellbore. This is crucial for the long-term integrity of the well because it prevents undesired fluids from migrating between zones, which could result in expensive repairs and environmental damage. The non-return valve in the float shoe is made to withstand the extreme pressures encountered during cementing, to ensure it stays operational throughout the entire process.

In conclusion, the float shoe is an essential part of the cementing process. It guarantees that the cement job is completed efficiently and preserves the well's integrity by stopping drilling fluid backflow. This ensures a well that is safe, stable, and productive throughout its lifecycle by protecting the wellbore structure and reducing fluid migration concerns. Any drilling operation's longevity and success depend on the float shoe's ability to isolate and seal fluid zones.

Float Shoe Helps in Cementing the Well

The float shoe performs a key function in the cementing process, ensuring that the cement slurry is appropriately distributed in the annular gap between the casing and the surrounding formation. Cementing is one of the most critical phases in well building because it serves as a barrier, sealing the wellbore and limiting the migration of undesirable fluids, such as gas, oil, or water, across different geological strata. Ineffective cementing could cause fluid migration in the well, which could result in problems including pollution, pressure imbalances, or even well failure.

The float shoe is a specially made instrument that is positioned at the bottom of the casing string to enable the correct cement placement. The float shoe allows the cement slurry to flow into the wellbore in a regulated way after it is pumped down through the casing during cementing. The main characteristic of the float shoe is its integrated non-return valve, which stops fluids from flowing backward into the casing from the wellbore when the cement is in place. This guarantees that the cement slurry stays in the proper location and keeps the well's fluids from diluting or contaminating it.

The stability of the wellbore depends on a well-done cementing process. In order to prevent the migration of gas, oil, or water from one formation into another, the cement creates a solid seal that separates the well's various fluid zones. By doing this, possible environmental risks are avoided and the well's integrity is preserved. Proper cementing not only seals the wellbore but also provides the structural stability required for the well's long-term operation by supporting the casing string and preventing collapse.

Ultimately, the float shoe ensures that the cementing process is performed successfully and without contamination. By preventing backflow and guaranteeing proper cement placement, the float shoe insures that the well is firmly sealed and ready for its intended use, whether for production or storage. Because of this, the float shoe is essential to maintaining the well's durability, effectiveness, and safety during its operational life.

Float Shoe Helps Control Pressure During Drilling

Controlling wellbore pressure is one of the most crucial components of drilling operations, as it ensures the safety and stability of the well. Proper pressure management is vital to prevent incidents such as blowouts, which occur when uncontrolled pressure forces fluids or gases to unexpectedly escape from the well. In this regard, the float shoe is essential for maintaining control and regulating well pressure during the cementing phase.

The non-return valve in the float shoe ensures that once cement is pumped into the well, it stays in place, maintaining the desired pressure and preventing any backward flow of fluids. This feature is especially valuable during the cementing process because, without it, there could be a significant risk of destabilizing the well pressure. If drilling fluids were to flow back into the wellbore, it could result in a loss of pressure control, which could trigger dangerous events like a blowout or fluid migration.

By maintaining a stable pressure environment, the float shoe enables the cementing operation to proceed without complications. The controlled pressure also decreases the possibility of generating weak spots or fractures in the wellbore during cement installation. Ultimately, the float shoe helps guarantee that the cement job is performed effectively and that the well remains safe and stable throughout drilling and completion. Its role in pressure control is vital for shielding the well from potentially catastrophic events and ensuring the integrity of the well over time.

Conclusion

A well's effective construction depends on the float shoe, which helps regulate pressure, stop backflow, and guarantee enough cementing. The float shoe is essential for preserving the wellbore's stability, stopping fluid migration, and promoting zonal isolation because of its strong materials, creative non-return valve, and capacity to promote well integrity. Its application guarantees the well's safe and effective sealing, safeguarding the environment and enabling sustained, profitable production.

The depth of the well, the hardness of the formation, and the particulars of your project all play a role in selecting the best taper mill for your drilling operation. At WELONG, we specialize in offering top-notch drilling equipment that fits your needs; our taper mills are made to be efficient and long-lasting, so you can easily handle challenging drilling conditions. Call us at oiltools15@welongpost.com for more information or individualized help; we're here to support your drilling operations with excellent products and dependable service.
