Components and Design of Casing Power Tongs
Assembly with Rotating Head

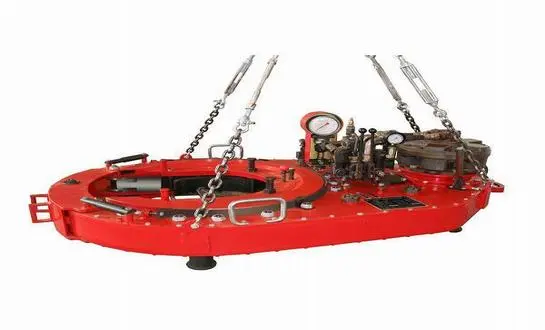

The Casing Power Tong's rotating head assembly is its central component. It is made up of a sturdy, gear-driven device that generates the rotational force required to break out or make up casing connections. Under extreme circumstances, this unit is made to function smoothly and sustain large torque loads. In order to ensure versatility in a variety of drilling conditions, the rotating head is usually outfitted with interchangeable dies that can accommodate different casing diameters.
The Gripping Mechanism and Jaw System
A vital part of the Casing Power Tong, the jaw system is in charge of firmly grasping the casing while operations are underway. Usually, it has jaws that are hydraulically operated and have replaceable dies that fit the surface of the casing. Without harming the shell, its design guarantees a solid grip. In high-torque applications, the gripping mechanism is designed to minimize the chance of deformation or slippage by uniformly distributing the clamping force.
Unit of Hydraulic Power
The Casing Power Tong's main source of power is the hydraulic power unit. It produces the hydraulic pressure required to run a number of parts, such as the rotating head and the jaw system. A high-capacity pump, reservoir, valves, and control systems are usually included in this unit. The design of the hydraulic power unit is centered on providing steady and dependable power, especially in harsh environmental circumstances that are frequently present in oilfield operations.
Operational Sequence and Functionality
Alignment and Engagement Casing
A Casing Power Tong's operating process starts with the tool and casing string being properly aligned. Operators carefully place the tong around the casing, making sure that the tool's centerline lines up with the axis of the casing. The jaw system engages and firmly grasps the shell after it is positioned. Maintaining stability and avoiding any unintentional movement throughout the ensuing torqueing process depend heavily on this initial engagement.
Application of Torque and Rotation
The spinning head assembly is activated once the casing has been firmly grasped. The torque required to either break out or make up the casing connection is applied by the hydraulic motor, which rotates the head. The control mechanism of the Casing Power Tong enables operators to precisely modify the torque and rotation speed during this period. Achieving the right connection tightness without overtightening, which might harm the case threads, requires this degree of control.
Features for Safety and Monitoring
Advanced Casing Power Tongs integrate a number of safety and monitoring elements throughout the operation. These could include emergency stop systems, rotation speed monitors, and torque sensors. These characteristics enable operators to keep a careful eye on the torque delivered to the casing and make sure it stays within the designated ranges. Furthermore, safety interlocks and alarms contribute to a safer working environment on the drilling rig by preventing mishaps and equipment damage.
Advantages and Considerations in Using Casing Power Tongs
Enhancements in Productivity and Efficiency
Drilling operations are much more efficient when Casing Power Tongs are used. These instruments are capable of rapidly and reliably applying high torque levels while handling casings with a big diameter. Faster make-up and break-out times result from this capacity, cutting down on total rig time and related expenses. Additionally, the accuracy provided by power tongs guarantees that every connection is done in accordance with the right specifications, reducing the possibility of connection failures and the downtime that follows.
Improvements in Safety
Oilfield activities place a high priority on safety, and Casing Power Tongs greatly enhance the working environment. These instruments minimize the danger of injuries related to heavy lifting and handling by automating the casing handling process, which eliminates the need for manual intervention. Modern power tongs' remote operating feature further improves safety by enabling operators to operate the machinery from a safe distance, away from any potential dangers on the rig floor.
Considerations for Operational and Maintenance
Although casing power tongs have many benefits, there are some maintenance and operational issues to be aware of. To guarantee optimum performance and longevity, wear parts must be replaced, lubricated, and inspected frequently. To get the most out of these advanced instruments and avoid abuse that might result in equipment damage or safety concerns, operators need to be properly taught in their use. To maintain operating efficiency and get the best results, it's also critical to choose the right Casing Power Tong size and capacity for a certain drilling operation.
Conclusion
The ability of casing power tongs to handle casing strings securely and effectively during drilling operations is the foundation of their operation. They are essential equipment in contemporary oilfield operations due to their intricate design, which incorporates hydraulic power and precise control systems. Drilling contractors can greatly increase their operational effectiveness, safety standards, and project results by comprehending and using these strong machines appropriately. Please email us at oiltools15@welongpost.com for more information on Casing Power Tongs and other oilfield equipment.
