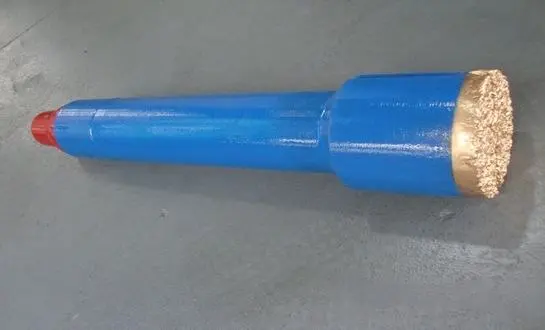

Composition and Manufacturing of Taper Mills
Choosing the Right Materials for Maximum Performance
The performance and lifetime of taper mills are directly impacted by the crucial process of material selection. The main option for the cutting elements is premium tungsten carbide, which is well-known for its exceptional hardness and resistance to wear. This material ensures that the mill can effectively cut through varied downhole impediments without quick degradation. AISI 4145H and other specially formulated steel alloys, which provide exceptional strength-to-weight ratios and fatigue resistance, are commonly used to manufacture the mill's body.
Advanced Production Methods
To guarantee accuracy and quality, taper mills are manufactured using complex techniques. Computer numerical control (CNC) technology is frequently used to mill the steel body, enabling precise requirements and close tolerances. The tungsten carbide inserts are meticulously brazed or welded onto the mill body, guaranteeing a secure attachment that can endure the rigors of downhole operations. To improve the mechanical qualities of the steel and increase the mill's overall performance and longevity, several producers use sophisticated heat treatment techniques.
Testing and Quality Assurance
To ensure the dependability of every taper mill, strict quality control procedures are used throughout the manufacturing process. This involves material testing to confirm the characteristics and composition of the tungsten carbide and steel components. To find any possible weaknesses or defects in the mill's construction, non-destructive testing techniques like magnetic particle testing and ultrasonic inspection are frequently used. Furthermore, a lot of manufacturers use simulated performance testing to assess the mill's longevity and cutting effectiveness in scenarios that closely resemble actual applications.
Performance Characteristics of Taper Mill Materials
Sturdiness and Resistance to Wear
In taper mills, the combination of high-strength steel alloys with tungsten carbide produces remarkable wear resistance and endurance. Even when exposed to abrasive forms and debris, tungsten carbide retains its cutting edge due to its high Mohs hardness rating. The steel body, strengthened by heat treatment procedures, offers the resilience required to endure the mechanical strains experienced during milling operations. Longer tool life results from this durability, which lowers replacement frequency and related downtime.
Resistance to Corrosion and Thermal Stability
Taper mills are made to function in conditions that include caustic substances and high temperatures. Their building materials have outstanding thermal stability, meaning that they retain their mechanical qualities across a broad temperature range. In deep well operations, where temperatures can reach 150°C (302°F), this is especially important. Additionally, the steel alloys that are utilized are frequently coated or treated to improve their resistance to corrosion. This prevents the tool from deteriorating due to exposure to carbon dioxide, hydrogen sulfide, and other corrosive elements that are frequently found in oil and gas wells.
Impact Strength and Fracture Toughness
The impact strength and fracture toughness of taper mill materials are crucial for their capacity to handle unexpected loads and resist crack propagation. Although brittle, the tungsten carbide inserts are positioned and designed to reduce the chance of chipping or fracturing, while the steel body offers the ductility required to absorb impacts without catastrophic failure. By taking a balanced approach, the mill can withstand the fluctuating and frequently unpredictable forces that are encountered during downhole operations, preserving its structural integrity and cutting effectiveness even in the face of difficult circumstances.
Innovations in Taper Mill Material Technology
Advanced Technologies for Coatings
The performance of taper mills has been greatly improved by recent developments in coating technology. Physical vapor deposition (PVD) methods and diamond-like carbon (DLC) coatings are being used to further increase the cutting components' resistance to wear and lower their friction. These ultra-hard coatings increase the mill's cutting efficiency and lifespan, enabling quicker and more accurate milling operations. In order to overcome one of the conventional drawbacks of hard surface treatments, several producers are investigating the use of nanostructured coatings, which provide better adhesion and resistance to chipping.
Hybrid and Composite Materials
The performance of taper mills is being pushed to the limit by the development of composite and hybrid materials. Metal matrix composites (MMCs), which combine the hardness of ceramic particles with the toughness of metal alloys, are being experimented with by researchers. When compared to conventional tungsten carbide inlays, these materials may provide better wear resistance and thermal stability. In order to optimize performance characteristics across various mill sections, several manufacturers are also investigating the use of functionally graded materials (FGMs) in taper mill construction, where the material composition progressively changes from one portion of the tool to another.
Intelligent Substances and Sensors
The state-of-the-art in material technology for the oil and gas sector is demonstrated by the incorporation of sensors and smart materials into taper mill designs. The possibility of using shape memory alloys to produce adaptive cutting elements that can alter their geometry in response to downhole circumstances is being researched. Additionally, real-time temperature, pressure, and wear monitoring is made possible by the integration of embedded sensors into the mill's structure. This data is useful for forecasting maintenance requirements and streamlining milling processes. More intelligent and effective taper mills that can adjust to different downhole conditions and give operators previously unheard-of levels of control and insight are becoming possible thanks to these advancements.
Conclusion
The performance and dependability of taper mills under demanding downhole conditions are greatly influenced by the materials they are made of. The durability, wear resistance, and cutting efficiency needed for efficient milling operations are provided by the combination of high-strength steel alloys with tungsten carbide cutting components. We may anticipate more advancements in taper mill technology as material science progresses, which will boost oil and gas industry productivity and lower operating costs. Please email us at oiltools15@welongpost.com for more details on taper mills and other oilfield products.
