What materials are taper mills typically made from?

Mostly utilized for well interventions and fishing operations, taper mills are vital equipment in the oil and gas sector. Usually made of premium materials, these specialist mills are made to endure the severe conditions seen in downhole settings. Tungsten carbide, high-speed steel, and other alloy steels are the most often utilized materials in the building of taper mills. Because of its remarkable toughness and resistance to wear, tungsten carbide is especially preferred for cutting through difficult materials like cement or metal debris. Alloy steels offer endurance and affordability, while high-speed steel offers a blend of toughness and hardness. A number of variables, including the particular application, well conditions, and operating needs, influence the material selection. To improve their cutting power and durability in difficult drilling conditions, some taper mills may also have diamond-impregnated surfaces or other cutting-edge materials.

Composition and Manufacturing Process of Taper Mills

Key Components of Taper Mill Construction

Materials that can endure the demanding requirements of downhole operations must be carefully chosen while building taper mills. For the cutting elements, tungsten carbide is frequently the material of choice due to its remarkable hardness and resistance to wear. This material is excellent at keeping edges sharp and preventing abrasion, both of which are essential for effective milling operations. Another well-liked choice is high-speed steel, which is appropriate for a range of milling applications because it strikes a balance between toughness and hardness. Because of their strength and machinability, alloy steels like 4140 or 4340 are commonly utilized for the taper mill's body.

Production Methods for Taper Mills

Taper mills are manufactured using advanced procedures to guarantee accuracy and longevity. It is normal practice to use Computer Numerical Control (CNC) machining to precisely shape the mill body and produce the tapered profile. In mills that use tungsten carbide, the carbide particles are bonded into a solid mass by a process called sintering. In order to create a dense, hard substance, the carbide powder is compressed and heated to temperatures close to melting. The tool's lifespan can be increased and wear resistance increased by applying surface treatments like thermal spraying or hardfacing.

Measures for Quality Control in the Production of Taper Mills

To guarantee that taper mills fulfill industry standards and operate at their best in the field, strict quality control procedures are put in place at every stage of the manufacturing process. Any internal or external problems are found using non-destructive testing techniques including magnetic particle inspection and ultrasonic testing. To confirm that the tapered shape and other important aspects are accurate, dimensional inspections are carried out. In order to verify that the material qualities fulfill the necessary specifications for the planned use, hardness testing is also carried out.

Performance Characteristics of Different Taper Mill Materials

The Ultimate Hardness: Tungsten Carbide

Tungsten carbide's remarkable hardness and resistance to wear make it a great material for taper mills. It performs better than the majority of other materials in terms of abrasion resistance, with a Mohs hardness rating of up to 9.5. Longer tool life and reliable performance in difficult downhole circumstances result from this. Tungsten carbide taper mills are perfect for intricate fishing operations because they are excellent at cutting through cement, metal debris, and hard formations. To avoid chipping or breaking under heavy impact loads, its brittle nature necessitates cautious handling and design considerations.

High-Speed Steel: Finding a Balance Between Toughness and Hardness

High-speed steel (HSS) is a flexible option for taper mill applications because it provides an appealing combination between toughness and hardness. HSS's hardness range of 62–65 HRC (Rockwell C Scale) allows it to remain cutting edge at high temperatures, which is an essential feature in downhole settings. Because of its durability, this material can sustain modest impact pressures without chipping, making it dependable for a range of milling processes. For general-purpose milling applications where a combination of cutting efficiency and tool longevity is needed, HSS taper mills work especially well in softer forms.

Alloy Steels: Economical Sturdiness

In taper mill construction, alloy steels like 4140 and 4340 are frequently utilized, especially for the tool body and less important parts. For many applications, these materials provide sufficient strength and durability at a reasonable price. It is possible to heat-treat alloy steel taper mills to reach hardness levels appropriate for less demanding milling tasks. Complex geometries and features can be included in the mill design because of their machinability. Hardfacing or other surface treatments can be applied to alloy steel mills to increase their overall performance and wear resistance, even though they are not as hard as tungsten carbide or HSS.

Advancements and Innovations in Taper Mill Materials

Cutting Surfaces Enhanced by Diamond

Diamond-enhanced cutting surfaces are the result of recent developments in taper mill technology. Tools with unmatched hardness and wear resistance have been produced by manufacturers by impregnating or coating the mill's cutting elements with synthetic diamond particles. Cutting through abrasive materials and highly hard formations that would soon wear down traditional tools is a strength of these diamond-enhanced taper mills. Originally created for drill bits, polycrystalline diamond compact (PDC) cutters have also been modified for use in specific taper mill designs. These cutters provide remarkable cutting efficiency and durability in demanding applications.

Coatings using Nanotechnology for Improved Performance

Advanced coatings made possible by nanotechnology have created new opportunities to enhance taper mill performance. To improve the hardness, wear resistance, and friction reduction qualities of taper mill cutting surfaces, nano-engineered coatings like diamond-like carbon (DLC) or titanium nitride (TiN) can be applied. These incredibly thin coatings, which are frequently only a few nanometers thick, can greatly increase the tool's cutting effectiveness and durability. Additionally, some nano-coatings provide enhanced corrosion resistance, which is advantageous in wells with harsh chemical conditions.

Composite Substances for Enhanced Efficiency

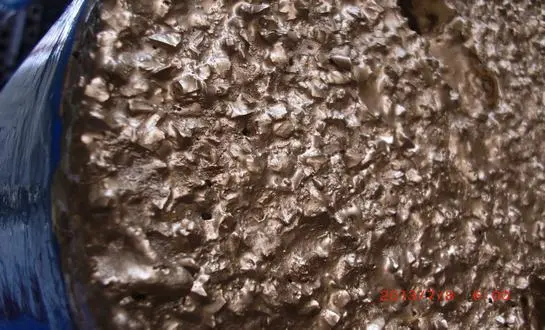

Innovative taper mill designs that combine the best qualities of several materials have been made possible by the development of composite materials. A taper mill, for instance, might have a durable alloy steel body with tungsten carbide or other ultra-hard inserts positioned strategically. This method enables performance characteristics to be optimized for certain applications. A self-sharpening effect is produced when the softer matrix wears away to reveal new cutting edges in some composite designs that use matrix materials with hard particles incorporated in them. The performance and durability of taper mills are being pushed to their limits by these developments in material science and engineering.

Conclusion

The performance, longevity, and applicability of taper mills for different downhole activities are greatly influenced by the materials used in their manufacture. The development of taper mill materials, from conventional materials like high-speed steel and tungsten carbide to cutting-edge developments in diamond-enhanced surfaces and nano-engineered coatings, keeps advancing fishing operations and well intervention. The continuous development of cutting-edge materials for taper mills will continue to be a major area of attention for both manufacturers and operators as the oil and gas sector deals with more difficult well conditions. Contact us at oiltools15@welongpost.com for additional details about taper mills and other oilfield items.
