Understanding Taper Mill Dimensions and Their Impact on Performance
Outside Diameter's (OD) Importance
One important factor that directly affects a taper mill's performance and variety of applications is its outside diameter. The OD establishes the largest wellbore diameter that the mill can efficiently clean or clear of impediments. Choosing a taper mill with an OD that is either equal to or somewhat larger than the desired wellbore diameter is crucial. This guarantees effective material removal and ideal contact with the wellbore walls. Finding a balance is essential, though, because an overly large OD can result in needless friction and decreased agility in confined situations.
The Function of Total Length in Milling Operations
A taper mill's reach and stability during milling operations are influenced by its overall length. When cleaning long stretches of the wellbore or deep obstacles, longer mills might offer more reach, which is advantageous. However, the rigidity and control of the mill might also be impacted by increased length. For precision milling jobs in intricate wellbore geometries, shorter taper mills are frequently chosen because they are more maneuverable. The particular requirements of the drilling project and the type of obstacles encountered should guide the length selection.
Finding the Correct Balance with Taper Angle
One important specification that influences a mill's cutting effectiveness and capacity to work through different wellbore diameters is its taper angle. Faster material removal and more aggressive cutting are made possible by a steeper taper angle. But it might also make getting trapped or making undesired ledges in the wellbore more likely. Although a shorter taper angle offers a smoother operation and a more gradual transition, it may take longer to finish the milling work. The type of material being milled, the wellbore conditions, and the intended rate of penetration all affect the ideal taper angle.
Cutting Structure and Material Composition: Key Factors in Taper Mill Performance
Design and Distribution of Cutting Element

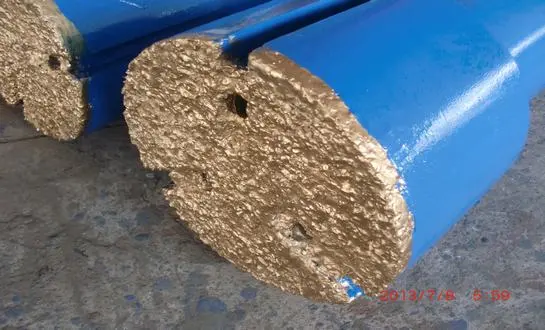

A taper mill's cutting structure is crucial to both its endurance and milling efficiency. The mill's capacity to efficiently remove different materials depends on the layout and positioning of its cutting elements, such as diamond-impregnated surfaces or tungsten carbide inserts. Throughout the milling process, uniform wear and consistent performance are guaranteed by a well-designed cutting structure. A few things to think about include the cutting elements' density, size, and shape as well as how they are arranged on the mill's surface. Specialized patterns or geometries may be used into advanced cutting structures to improve debris clearance and cutting efficiency.
Choosing the Right Material for the Best Wear Resistance
The taper mill's lifetime and performance in challenging downhole environments are greatly influenced by the materials chosen for construction. Superior taper mills frequently combine robust base materials with cutting-edge surface treatments. High-strength steel alloys, which provide exceptional toughness and impact resistance, are often used base materials. The mill's operational life can be increased and wear resistance further improved by surface treatments like hardfacing or specialty coatings. Temperature, pressure, and the formation's abrasiveness should all be taken into consideration when choosing materials for a given drilling environment.
Design of Junk Slots for Effective Debris Removal
Maintaining a taper mill's milling performance requires efficient debris removal. In this process, garbage slots' size and design are crucial. To avoid clogging and preserve optimum cutting performance, well-designed trash holes allow drilling fluid and milled waste to move smoothly away from the cutting face. The anticipated amount and kind of debris produced during milling operations should be taken into account when determining the size and arrangement of garbage slots. A well-designed garbage slot reduces the chance of stuck pipe occurrences, improves hole cleaning, and increases milling efficiency.
Selecting the Right Taper Mill for Your Specific Drilling Application
Examining the Conditions and Barriers in the Wellbore
A detailed examination of the wellbore conditions and the type of blockages to be eliminated is the first step in selecting the right taper mill. It is important to carefully consider variables including wellbore diameter, deviation, and the obstacles' composition (such as metal, cement, or formation material). This evaluation aids in figuring out the necessary taper angle, cutting structure, and mill size. For example, in order to guarantee adequate contact with the wellbore walls, heavily deviated wells might need mills with particular design elements. The selection of cutting components and mill materials will also be influenced by the obstacles' composition and hardness.
Taking Operational Limitations and Parameters into Account
The performance of taper mills is greatly influenced by operational factors as hydraulics, rotary speed, and weight on bit (WOB). Choosing a mill that can provide the best milling results under the expected operating conditions is crucial. Consideration should be given to elements such as the required rotary speed range, the maximum permitted WOB, and the necessary flow rate. To prevent operational problems, compatibility with current drilling tools and equipment must also be guaranteed. Selecting the best taper mill for particular operating characteristics and constraints might be aided by speaking with knowledgeable mill manufacturers and drilling engineers.
Assessment of Performance and Cost-Effectiveness Trade-offs
It's critical to weigh cost and performance characteristics while choosing a taper mill. Although they may provide greater durability and milling efficiency, high-performance mills with sophisticated cutting structures and materials are more expensive initially. Conversely, less expensive choices may need to be replaced more frequently or have longer operating lifespans. A thorough cost-benefit analysis must to be carried out, accounting for elements such the operation's criticality, anticipated milling duration, and possible downtime expenses. In certain situations, purchasing a high-end taper mill can result in considerable long-term cost savings due to increased productivity and decreased idle time.
Conclusion
Optimizing drilling operations and guaranteeing economical solutions require an understanding of the complexities of taper mill sizing and requirements. Drilling specialists can choose the best taper mill for their particular applications by carefully weighing variables including size, cutting structure, material composition, and operating needs. With this information, decision-makers can make well-informed decisions that improve operational effectiveness, reduce downtime, and increase project success overall. Please contact our team of experts at oiltools15@welongpost.com for professional advice on choosing the best taper mill for your drilling requirements.
