Design and Functionality of Float Shoes
Essential Elements of Float Shoes

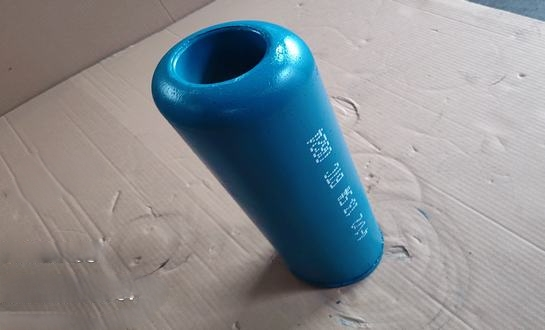

Float shoes are carefully designed devices that use a number of essential parts to perform their function of providing stability to the casing. Usually made of sturdy materials like steel or aluminum, the float shoe's main body can resist the challenging conditions found downhole. The float valve, which permits fluid to flow in a single direction while blocking backflow, is an essential component. Usually a ball-and-seat or flapper-type mechanism, this valve is made to automatically close when the fluid flow reverses or stops. In order to help with circulation and cement placement during the cementing process, float shoes may also have jet ports or nozzles.
Principles of Operation
Hydraulic and mechanical elements form the foundation of float shoes' working principles. The float shoe reduces the buoyant effect and facilitates easier insertion by allowing drilling fluid to flow through while the casing is lowered into the wellbore. The float valve stops fluid from entering the casing by closing when the desired depth is reached. A pressure differential produced by this closure aids in keeping the casing in place. The float shoe ensures uniform dispersion of the cement slurry throughout the casing by guiding it via its ports during cementing operations. To preserve the integrity of the cement job, the one-way valve stops cement from returning to the casing.
Different Float Shoe Types
To accommodate various well conditions and operational needs, there are several varieties of float shoes available. To make it easier to get around ledges and other obstacles in the wellbore, guide shoes are made with a rounded nose. By enabling regulated fluid entry while running, differential fill-up float shoes lower surge pressures. The off-center design of eccentric float shoes makes it easier to run in deviating wells. To maximize casing stability and overall well performance, it is essential to comprehend the particular application and select the right kind of float shoe.
Impact on Casing Run and Cementing Operations
Enabling a Smooth Installation of Casing
A seamless casing installation procedure is made possible in large part by the float shoe. Surge pressures that can harm the formation or result in wellbore instability are less likely to occur when fluid is let to bypass through its valve system. Particularly important in wells with sensitive formations or limited pressure windows is this fluid management capabilities. Additionally, by assisting in centering the casing within the wellbore, the shoe's design promotes uniform cement distribution and lessens the possibility of differential sticking while running operations are underway.
Increasing the Efficiency of Cementing
The total efficacy and efficiency of cementing operations are greatly enhanced by the use of float shoes. The ports or nozzles on the shoe are positioned to maximize cement dispersion and flow around the casing. This guarantees a more consistent cement sheath, which is essential for long-term well integrity and zonal isolation. By preventing cement backflow, the float valve lowers the chance of contamination and guarantees that the cement sets properly while also assisting in maintaining the appropriate height of the cement column.
Reducing Operational Hazards
Float shoes are essential for reducing a number of operational risks related to cementing and casing installation. In deep or deviated wells, they lessen the chance of casing collapse or buckling by giving the casing string buoyancy, which lowers the effective weight. Controlling fluid entry and exit through the shoe also lessens the chance of lost circulation events and helps avoid formation damage. Additionally, well safety and integrity are improved by the float valve's sealing capabilities, which guards against gas migration during cement setting.
Advancements and Considerations in Float Shoe Technology
Creative Designs and Materials
Recent developments in float shoe technology have prioritized enhancing performance, adaptability, and durability. New materials including high-strength composites and sophisticated alloys are being investigated by manufacturers to improve the shoe's resistance to erosion and corrosion. To increase manufacturing rates, some creative designs use degradable materials that may be taken out after solidifying. Additionally, smart float shoes with sensors for real-time data transmission are being developed. These shoes will provide important information about downhole conditions during cementing and casing running operations.
Customizations Based on the Application
Float shoe designs are being modified to satisfy particular application needs as drilling operations expand into increasingly difficult settings. Specialized float shoes with improved sealing qualities and temperature-resistant materials are being used for high-temperature, high-pressure (HTHP) wells. Float shoes with enhanced fluid bypass systems aid in the more efficient management of equivalent circulation densities (ECDs) in extended-reach drilling operations. In order to maximize cement placement in intricate well geometries, customized nozzle configurations are also being created.
Combining Simulation with Well Planning
Comprehensive well planning and modeling processes are increasingly incorporating the design and selection of float shoes. Engineers can simulate the effects of various float shoe designs on cementing and casing running processes using sophisticated software tools. To get the greatest results in terms of cement work quality and casing stability, these simulations aid in the optimization of circulation rates, valve designs, and shoe placement. Operators can improve overall well performance and lower the risk of difficulties by taking float shoe factors into account early in the well design phase.
In conclusion, float shoes are essential parts of a successful well construction and stable casing. Their significance in contemporary drilling operations is highlighted by their vital function in promoting efficient cementing, lowering operational hazards, and enabling seamless casing installation. There will probably be additional advancements in float shoes as technology develops, which will help make well construction techniques safer, more effective, and more dependable. For more information on float shoes and other oilfield products, please contact us at oiltools15@welongpost.com.
