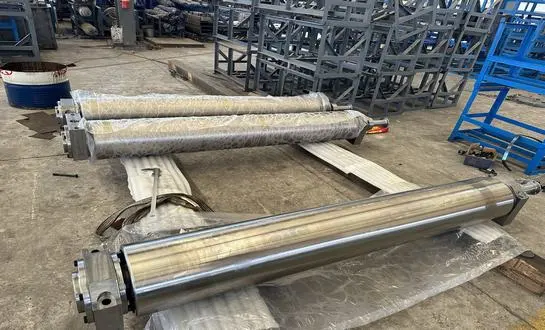

What Are the Consequences of Poor Tension Roller Alignment in High-Speed Printing?
Impact on Print Quality
Poor tension roller alignment can severely compromise print quality in high-speed printing operations. When rollers are misaligned, they create uneven tension across the substrate, leading to a host of issues. One of the most noticeable problems is banding—visible lines or streaks that appear perpendicular to the direction of print. This occurs when the tension varies across the width of the material, causing some areas to receive more or less ink than others. Additionally, misalignment can result in ghosting, where faint, unintended images appear on the printed surface due to improper contact between the substrate and printing plates or cylinders.
Increased Material Waste
Misaligned tension rollers contribute significantly to material waste in printing processes. As the substrate passes through the press at high speeds, improper tension can cause web breaks, leading to substantial amounts of wasted material. Moreover, the quality issues mentioned earlier often result in a higher rejection rate of printed products, further increasing waste. In large-scale printing operations, even a small percentage increase in waste can translate to substantial financial losses and environmental impact.
Equipment Wear and Tear
The consequences of poor tension roller alignment extend beyond print quality and waste. Misalignment puts undue stress on various components of the printing press. Bearings, shafts, and other mechanical parts experience increased wear when subjected to uneven loads caused by improper tension distribution. Over time, this accelerated wear can lead to premature equipment failure, resulting in costly repairs and unplanned downtime. Furthermore, the vibrations caused by misaligned rollers can affect the overall stability of the printing system, potentially leading to resonance issues that compromise the longevity of the entire machine.
How to Diagnose Misaligned Tension Rollers in Multi-Stage Presses
Visual Inspection Techniques
Diagnosing misaligned tension rollers in multi-stage presses begins with a thorough visual inspection. Experienced operators can often spot telltale signs of misalignment by observing the behavior of the substrate as it moves through the press. Look for uneven tracking of the web, where the material may drift to one side or exhibit waviness along its edges. Another visual cue is the formation of wrinkles or creases in the substrate, particularly near the edges. These imperfections often indicate that the tension is not uniformly distributed across the width of the material. Additionally, inspect the rollers themselves for signs of uneven wear patterns, which can be indicative of long-term misalignment issues.
Tension Measurement Tools
To accurately diagnose tension roller alignment problems, specialized measurement tools are indispensable. Handheld tension meters, also known as tensiometers, allow operators to measure the tension at various points across the width of the substrate. By comparing these measurements, discrepancies in tension distribution can be identified. More advanced systems employ inline tension sensors that continuously monitor web tension throughout the printing process. These sensors can provide real-time data and even trigger alerts when tension falls outside of specified parameters. Laser alignment tools are also valuable for checking the parallelism of rollers across multiple stages of the press, ensuring that each roller is properly positioned relative to others in the system.
Analyzing Print Output
The final printed product itself can offer valuable insights into tension roller alignment issues. Carefully examine printed samples for common defects associated with misalignment. Look for consistent patterns of color variation across the width of the print, which may indicate uneven pressure distribution. Pay close attention to the registration of different color layers, as misalignment can cause slight shifts in registration, particularly noticeable in fine details or text. In multi-color printing, examine areas where different colors meet or overlap, as poor alignment can lead to gaps or overlaps in these transition zones. By systematically analyzing the print output and correlating observed defects with specific areas of the press, technicians can pinpoint problematic rollers or sections that require adjustment.
Alignment Maintenance Schedules for High-Volume Print Facilities
Daily Checks and Adjustments
Implementing a rigorous daily maintenance routine is crucial for maintaining optimal tension roller alignment in high-volume print facilities. At the start of each shift, operators should perform quick visual inspections of the tension rollers and web path. This includes checking for any visible signs of wear, damage, or contamination that could affect alignment. Daily checks should also involve running test prints and examining them for any indication of alignment issues. If minor discrepancies are detected, small adjustments can be made to the tension settings or roller positions to maintain print quality throughout the day's production run. It's essential to keep detailed logs of these daily checks and any adjustments made, as this information can be valuable for identifying trends or recurring issues over time.
Weekly Comprehensive Assessments
On a weekly basis, more thorough assessments of tension roller alignment should be conducted. This typically involves dedicating time outside of regular production hours to perform more detailed measurements and adjustments. Use precision alignment tools to check the parallelism of rollers across all stages of the press. Measure and record tension values at multiple points across the web width to ensure uniform distribution. Inspect bearings, shafts, and mounting points for any signs of wear or looseness that could contribute to misalignment. Additionally, this is an opportune time to clean and lubricate roller components according to manufacturer specifications, as proper maintenance can help prevent alignment issues from developing.
Monthly Calibration and Documentation
Monthly maintenance routines should include a comprehensive calibration of the entire tension control system. This involves verifying and adjusting the accuracy of tension sensors, load cells, and control mechanisms. It's also an ideal time to review and update documentation related to tension roller alignment procedures and specifications. Analyze production data and quality control reports from the past month to identify any recurring alignment-related issues that may require more in-depth investigation or corrective action. Consider bringing in specialized technicians or engineers to perform advanced diagnostics and make any necessary adjustments that go beyond the scope of regular maintenance procedures. By adhering to a structured monthly calibration and documentation process, high-volume print facilities can ensure consistent performance and minimize the risk of alignment-related quality issues.
Source: CHINA WELONG-Oilfield tools Manufacturer

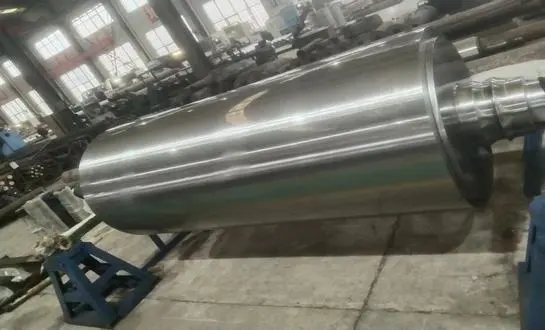

FAQ about Tension Roller
What is the function of a tension roller in printing applications?
A tension roller in printing applications serves to maintain consistent tension in the material being fed through the printing press. It helps control the speed and alignment of the paper or other media, ensuring smooth and even feeding. By regulating tension, the roller prevents wrinkles, jams, or uneven printing, improving the overall quality of the printed output. Tension rollers are crucial in high-speed printing operations to ensure precise control and maintain the integrity of the material throughout the printing process.
How often should tension rollers be replaced or refurbished?
Tension rollers should typically be replaced or refurbished every 1 to 2 years, depending on the frequency of use and the specific conditions of the printing operation. High-volume or continuous printing may require more frequent maintenance to ensure optimal performance. Signs that the rollers need attention include excessive wear, visible damage, or inconsistent tension control. Regular inspection and maintenance can help extend the lifespan of tension rollers and ensure the quality and efficiency of the printing process. Always follow the manufacturer's recommendations for specific replacement intervals.
Can tension roller alignment affect print registration?
Yes, tension roller alignment can significantly affect print registration. If the rollers are misaligned, it can cause uneven tension across the material, leading to issues such as skewing or stretching. This misalignment can result in misregistration of the printed image, where colors or designs do not line up correctly on the substrate. Proper alignment ensures even tension, helping maintain precise control over the material’s movement, which is critical for accurate print registration and high-quality output. Regular checks and adjustments of roller alignment are essential for optimal print results.
In conclusion, tension roller alignment is a critical factor in achieving high-quality prints, minimizing waste, and ensuring the longevity of printing equipment. By implementing rigorous maintenance schedules and utilizing advanced diagnostic techniques, printing facilities can optimize their operations and maintain a competitive edge in the industry. For more information on tension rollers and other precision components for printing applications, please contact us at oiltools15@welongpost.com. Welong is committed to providing top-quality solutions for all your printing needs.
