Overview of Crankshaft Forging Processes
Types of Forging Techniques
Crankshaft forging involves various techniques, each designed to meet different production needs and requirements. One of the most common methods is open-die forging, which is highly versatile and well-suited for large, custom crankshafts. This method involves shaping the metal by applying pressure through large dies, but the metal does not completely fill the die cavity. Open-die forging allows for flexibility in terms of part size and design but can be time-consuming for high-volume production.
In contrast, closed-die forging offers greater precision and control over the dimensions of the crankshaft, making it ideal for mass production. In this method, the metal is enclosed in a die cavity, allowing for more consistent results and tighter tolerances. This technique is particularly beneficial when producing large quantities of identical crankshafts, as it minimizes variations in size and shape, ensuring uniformity across the production run.
A more advanced technique, precision forging, takes the benefits of closed-die forging a step further. By employing advanced technologies, precision forging minimizes material waste and reduces the need for additional machining operations. This process is often used for high-performance crankshafts, where precise tolerances and reduced post-processing are critical.
Advantages of Forged Crankshafts
Forged crankshafts offer numerous advantages over their cast counterparts. The primary benefit is the enhancement of mechanical properties. The forging process aligns the metal's grain structure, which improves its strength, toughness, and fatigue resistance. This grain alignment is crucial for crankshafts used in high-stress environments, such as engines for heavy machinery, automotive applications, or oil field equipment. The superior structural integrity provided by forged crankshafts results in increased durability, longer service life, and better overall performance. These advantages are particularly vital when dealing with extreme pressure, heavy loads, and frequent cycles of stress.
Historical Development
The history of crankshaft forging has witnessed significant technological advancements, which have contributed to both the efficiency and quality of production. In the early days, crankshaft forging was a labor-intensive process involving manual hammering and basic tools. Over time, innovations in technology revolutionized the industry, with the introduction of powered hammers and hydraulic presses. These advancements allowed for more consistent results and faster production times. The most recent breakthroughs include computer-controlled hydraulic presses and automated systems, which have further improved precision and efficiency. These technological developments have not only made crankshaft production faster and more reliable but have also led to significant improvements in the overall quality and performance of the final product.
Material Selection for Forged Crankshafts
Common Alloy Choices
Material selection is paramount in crankshaft forging. Carbon steels, such as SAE 1045 or 1060, offer a balance of strength and machinability. For higher performance applications, alloy steels like 4140 or 4340 are preferred due to their enhanced hardenability and wear resistance. In specialized cases, microalloyed steels containing small amounts of vanadium or niobium may be used to achieve specific property profiles.
Material Properties Consideration
When selecting materials for forged crankshafts, engineers must consider a complex interplay of properties. Tensile strength, yield strength, and fatigue resistance are critical for withstanding the cyclic loads experienced during operation. Toughness is essential to prevent brittle fracture, while adequate ductility ensures the material can be successfully forged without cracking. The material's response to heat treatment, which can significantly enhance mechanical properties, is also a key factor in the selection process.
Environmental Factors
In the oil and gas industry, crankshafts often operate in harsh environments. Corrosion resistance becomes a crucial consideration, particularly for offshore applications where exposure to saltwater is common. Materials may be selected or treated to provide improved resistance to hydrogen embrittlement, a phenomenon that can occur in sulfide-containing environments often encountered in oil and gas operations.
Step-by-Step Crankshaft Forging Procedure
Billet Preparation
The crankshaft forging process begins with careful billet preparation. High-quality steel is cut to precise dimensions, considering the final crankshaft size and allowing for material flow during forging. The billet undergoes thorough inspection for defects and may be preheated to a specific temperature to enhance its formability.
Forging Operations
The core of the shaft forging process involves several distinct operations:
- Upsetting: The billet is compressed along its axis to increase its diameter, distributing material for subsequent forming.
- Drawing: The workpiece is elongated and shaped to roughly resemble the final crankshaft geometry.
- Bending: Carefully controlled bending operations form the crankshaft's characteristic shape with its offset journals.
- Die Forging: The semi-finished crankshaft is placed in precision-engineered dies and subjected to immense pressure, refining its shape and improving its mechanical properties.
These operations are typically performed using hydraulic presses or mechanical forging hammers, with the choice depending on factors such as crankshaft size, material properties, and production volume.
Post-Forging Treatment
After forging, crankshafts undergo several critical post-processing steps:
- Heat Treatment: Carefully controlled heating and cooling cycles optimize the crankshaft's microstructure, enhancing strength and toughness.
- Machining: Precision machining operations bring the forged crankshaft to its final dimensions and surface finish.
- Surface Treatment: Techniques such as induction hardening or nitriding may be applied to improve wear resistance on critical surfaces.
- Balancing: Dynamic balancing ensures smooth operation at high rotational speeds.
These post-forging treatments are essential for achieving the exacting specifications required for high-performance crankshafts in the oil and gas industry.
Source: CHINA WELONG-Oilfield tools Manufacturer
FAQ about Shaft forging
What are the key advantages of shaft forging over other manufacturing methods?
Shaft forging offers several significant advantages over alternative manufacturing methods like casting or machining from solid stock. The forging process aligns the metal's grain structure along the contours of the part, resulting in superior strength and fatigue resistance. This is particularly crucial for components like crankshafts that are subjected to high cyclic loads. Forged shafts also typically exhibit better machinability and surface finish, reducing subsequent processing requirements. Additionally, the forging process can produce near-net-shape parts, minimizing material waste compared to machining from solid billets.
How does material selection impact the shaft forging process?
Material selection plays a critical role in the shaft forging process and the final product's performance. Different alloys exhibit varying flow characteristics during forging, influencing the process parameters and die design. For instance, some high-strength alloys may require higher forging temperatures or more precisely controlled deformation rates to avoid cracking. The material's hardenability also affects post-forging heat treatment processes, which are crucial for achieving the desired mechanical properties. In the context of oil and gas applications, materials must be selected not only for their mechanical properties but also for their resistance to corrosion and other environmental factors encountered in field operations.
What quality control measures are essential in shaft forging?
Quality control in shaft forging is a multi-faceted process that begins with raw material inspection and continues through every stage of production. Key measures include:

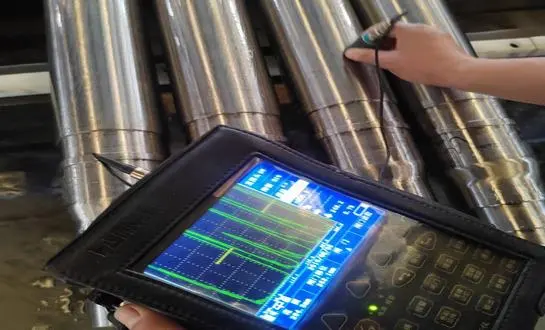

- Non-destructive testing (NDT) techniques such as ultrasonic testing and magnetic particle inspection to detect internal and surface defects
- Dimensional checks at various stages of the forging process to ensure conformity with specifications
- Metallurgical analysis to verify proper grain structure and material properties
- Mechanical testing of sample parts to confirm strength, hardness, and fatigue resistance
- Visual inspection for surface defects and finish quality
These rigorous quality control measures are essential for ensuring the reliability and performance of forged shafts in critical applications like oil and gas equipment.
In conclusion, the process of shaft forging crankshafts is a sophisticated manufacturing technique that combines metallurgical science with precision engineering. From material selection to post-forging treatments, each step is crucial in producing high-performance crankshafts capable of withstanding the demanding conditions in oil and gas operations. As technology continues to advance, we can expect further refinements in forging processes, leading to even more durable and efficient crankshafts. For more information on shaft forging and other oilfield products, please contact us at oiltools15@welongpost.com. Welong is committed to providing top-quality forged components that meet the exacting standards of the oil and gas industry.
