Understanding the Forging Process for Crankshafts
The Basics of Metal Forging
Metal forging is an ancient yet sophisticated manufacturing technique that has evolved significantly over time. At its core, forging involves the reshaping of metal through controlled deformation under high pressure and temperature. This process alters the internal structure of the metal, enhancing its mechanical properties. For crankshafts, the forging process begins with selecting high-quality alloy steel, which is then heated to a specific temperature to increase its malleability.
Specialized Techniques in Crankshaft Forging
Crankshaft forging employs specialized techniques to ensure the final product meets the exacting standards required for high-performance engines. One such method is closed-die forging, where the heated metal billet is placed between two dies that contain the negative shape of the desired crankshaft. As the dies close under immense pressure, the metal flows into every crevice of the mold, forming a near-net shape of the crankshaft. This process is often followed by precision machining to achieve the final dimensions and surface finish.
Quality Control in the Forging Process

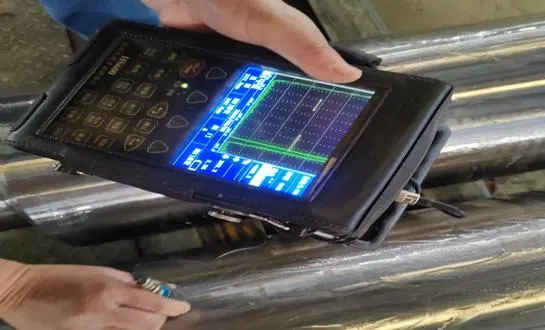

Quality control is paramount in crankshaft forging. Throughout the process, various checks and measurements are performed to ensure the integrity of the component. Non-destructive testing methods, such as ultrasonic inspection and magnetic particle testing, are employed to detect any internal flaws or surface defects. The rigorous quality control measures ensure that each forged crankshaft meets or exceeds the stringent requirements of the oil and gas industry, where reliability is critical.
Enhanced Strength and Durability of Forged Crankshafts
Molecular Structure Improvements
The forging process fundamentally alters the molecular structure of the metal, resulting in a more refined and uniform grain structure. This transformation occurs as the metal is subjected to intense pressure and heat, causing the grains to align and compact. The result is a denser material with fewer voids and impurities, which translates to superior mechanical properties. Forged crankshafts exhibit higher tensile strength, improved ductility, and enhanced resistance to fatigue and impact loading compared to their cast counterparts.
Stress Distribution and Load Bearing Capacity
Forged crankshafts excel in their ability to distribute stress more evenly throughout the component. The aligned grain structure created during the shaft forging process allows for better load distribution, reducing stress concentrations that can lead to premature failure. This enhanced stress distribution is particularly crucial for crankshafts, which are subjected to complex loading patterns including bending, torsion, and compression during operation. The improved load-bearing capacity of forged crankshafts makes them ideal for high-performance engines and heavy-duty applications in the oil and gas industry.
Longevity and Reliability in Extreme Conditions
The oil and gas sector often operates in harsh environments, subjecting equipment to extreme temperatures, corrosive substances, and high-pressure conditions. Forged crankshafts demonstrate superior resilience in these challenging scenarios. The dense, uniform structure of forged components provides better resistance to corrosion and erosion, extending the operational life of the crankshaft. Additionally, the enhanced fatigue resistance of forged crankshafts ensures reliable performance over extended periods, reducing the risk of unexpected failures and costly downtime in critical drilling operations.
Grain Structure Advantages in Forged Components
Microstructural Refinement Through Forging
The forging process induces significant changes in the metal's microstructure, leading to grain refinement and improved mechanical properties. As the metal is subjected to high pressure and temperature during forging, the original coarse grain structure is broken down and recrystallized into finer, more uniformly distributed grains. This refined grain structure contributes to the overall strength and toughness of the forged crankshaft. The smaller grain size increases the number of grain boundaries, which act as barriers to dislocation movement, thereby enhancing the material's yield strength and resistance to deformation.
Anisotropic Properties and Directional Strength
Forging imparts anisotropic properties to the crankshaft, meaning the mechanical characteristics vary depending on the direction of applied force. This anisotropy is a result of the grain flow pattern established during the forging process. By carefully controlling the forging direction, manufacturers can align the grain flow to optimize strength in specific areas of the crankshaft that experience the highest stresses during operation. This directional strength is particularly beneficial in crankshafts, where different sections of the component are subjected to varying types and magnitudes of stress.
Elimination of Internal Defects
One of the most significant advantages of the forging process is its ability to eliminate or greatly reduce internal defects commonly found in cast materials. The intense pressure applied during shaft forging helps to close any voids or porosity that may exist in the initial billet. Additionally, the plastic deformation and recrystallization processes break down and disperse any inclusions or impurities present in the metal. This results in a more homogeneous material structure, free from the shrinkage cavities, gas pockets, and large inclusions that can act as stress concentrators and initiation points for cracks in cast crankshafts.
Source: CHINA WELONG-Oilfield tools Manufacturer
FAQ about Shaft forging
What are the key differences between forged and cast crankshafts?
Forged crankshafts differ significantly from cast crankshafts in terms of their manufacturing process and resulting properties. Forged crankshafts are produced by shaping heated metal under high pressure, resulting in a denser, more uniform grain structure. This process enhances the mechanical properties of the metal, including improved strength, durability, and fatigue resistance. Cast crankshafts, on the other hand, are made by pouring molten metal into a mold. While casting can produce complex shapes, the resulting components generally have lower strength and may contain more internal defects compared to forged parts. Forged crankshafts typically exhibit superior performance in high-stress applications, making them the preferred choice for heavy-duty engines and critical operations in the oil and gas industry.
How does the forging process impact the lifespan of a crankshaft?
The forging process significantly extends the lifespan of a crankshaft through several mechanisms. Firstly, the improved grain structure resulting from forging enhances the material's resistance to fatigue, which is a common cause of crankshaft failure. The denser, more uniform structure also provides better resistance to wear and deformation under high loads. Additionally, the elimination of internal defects during forging reduces the likelihood of crack initiation and propagation. These factors combine to create a crankshaft that can withstand higher stresses for longer periods, translating to increased reliability and reduced maintenance requirements. In the context of oil and gas operations, where equipment downtime can be extremely costly, the extended lifespan of forged crankshafts represents a significant advantage.
Are there any disadvantages to using forged crankshafts?
While forged crankshafts offer numerous advantages, there are a few considerations to keep in mind. The primary drawback is often the higher initial cost compared to cast crankshafts. The shaft forging process requires specialized equipment and skilled labor, which can increase production expenses. Additionally, the forging process may limit some design flexibility compared to casting, particularly for very complex shapes. However, for most applications in the oil and gas industry, the benefits of increased strength, durability, and reliability far outweigh these limitations. When considering the total lifecycle cost, including reduced maintenance and longer service life, forged crankshafts often prove to be the more economical choice in the long run.
In conclusion, forged crankshafts offer superior performance, durability, and reliability, making them the preferred choice for demanding applications in the oil and gas industry. Their enhanced strength, improved grain structure, and resistance to fatigue and wear contribute to longer operational lifespans and reduced maintenance costs. While the initial investment may be higher, the long-term benefits of forged crankshafts make them a wise choice for companies prioritizing equipment reliability and efficiency. For more information on high-quality shaft forging for oilfield applications, please contact us at oiltools15@welongpost.com. Welong is committed to providing top-tier solutions that meet the exacting standards of the oil and gas industry.
